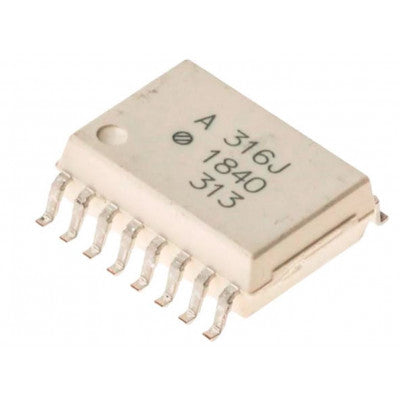

A316J Optocoupler with Integrated Desaturation (VCE) Detection
Compact, Affordable, and Easy-to-Implement IGBT VCE Fault Protection
The A316J is an easy-to-use, intelligent gate driver designed for compact, affordable, and easy-to-implement IGBT VCE fault protection. It satisfies worldwide safety and regulatory requirements, offering features such as user-configurable inputs, integrated VCE detection, under-voltage lockout (UVLO), "soft" IGBT turn-off, and isolated fault feedback for maximum design flexibility and circuit protection.
Features:
- Maximum Peak Output Current: 2.5 A
- Drive Capability: Up to IC = 150A, VCE = 1200V
- Status Feedback: Optically isolated, FAULT status feedback
- Package: SO-16
Specifications:
- Storage Temperature (TS): -55 to 125 °C
- Operating Temperature (TA): -40 to 100 °C
- Output IC Junction Temperature (TJ): 125 °C
- Peak Output Current (|Io(peak)|): 2.5 A
- Fault Output Current (IFAULT): 8 mA
- Positive Input Supply Voltage (VCC1): -0.5 to 5.5 V
- Input Pin Voltages (VIN+, VIN-, VRESET): -0.5 to VCC1
- Total Output Supply Voltage: -0.5 to 35
- Negative Output Supply Voltage: -0.5 to 15
- Positive Output Supply Voltage: -0.5 to 35 - (VE - VEE)
- Gate Drive Output Voltage (Vo(peak)): -0.5 VCC2
* Images are for illustration only; actual product may vary.
