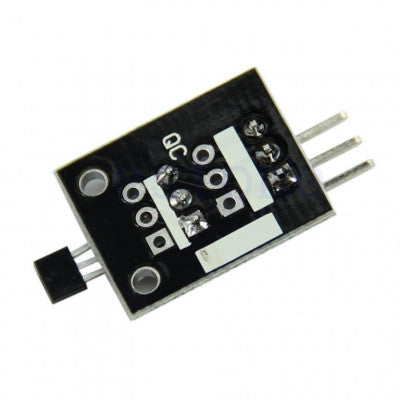

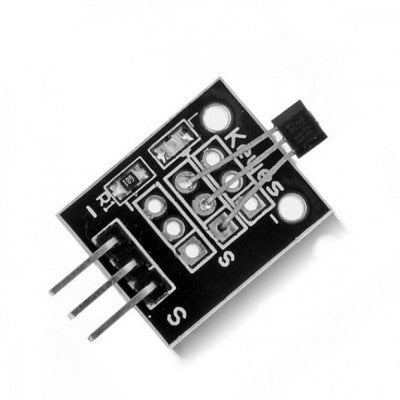

A3144 Hall Effect Sensor Magnet Detector Switch for Arduino
A switch that turns on/off in the presence of a magnetic field
- Operating Voltage: 5V DC
- Power Consumption at Rest: 3mA
- Power Consumption when Switched: 8mA
- Operating Temperature: -40 to +90°C
- Length: 20mm
- Width: 16mm
- Weight: 2g
Top Features:
- Digital Output Hall-effect sensor
- Operating voltage: 5V
- Output Current: 25mA
- Operating temperature: -40°C to 85°C
The A3144 Hall Effect Sensor Magnet Detector Switch for Arduino is a digital output Hall-effect sensor that operates at 5V DC. It can detect both poles of a magnet and has an output voltage equal to the operating voltage. With an operating temperature range of -40°C to 85°C, this sensor is suitable for automotive and industrial applications.

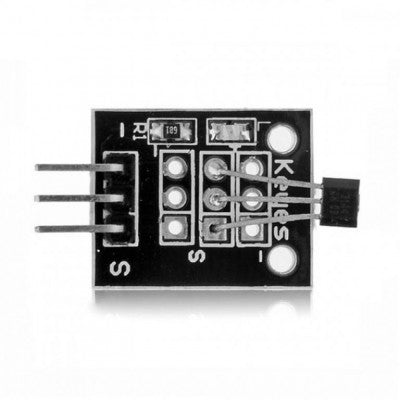

Pin Connection: Connect the Powerline (middle) to +5V and ground (-) to GND. Connect signal (s) to any digital pin on the Arduino.
An onboard LED indicates the presence of a magnetic field. When no magnetic field is present, the signal line of the sensor is HIGH at 3.5V. In the presence of a magnetic field, the signal line goes LOW, and the LED on the sensor lights up.
