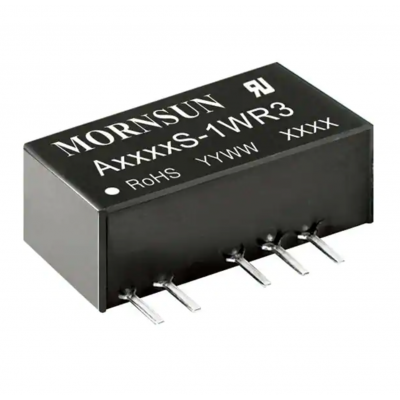

A2412S-1WR3 Mornsun 24V to ±12V DC-DC Converter 1W Power Supply Module
Efficient and reliable DC-DC converter with industry-standard pin-out
- Input Voltage Range: 21.6-26.4V
- Nominal Voltage: 24 Vdc
- Output Voltage: ±12V
- Output Current: ±42/±5(mA)
- Wattage: 1W
- Isolation: 1.5kVdc
- Package: SIP
Top Features:
- Continuous short-circuit protection
- No-load input current as low as 8mA
- Operating temperature range: -40 to +105 Deg C
- High efficiency up to 81%
The A2412S-1WR3 Mornsun 24V to ±12V DC-DC Converter 1W Power Supply Module is designed to provide a reliable power conversion solution with an industry-standard pin-out. It offers an input voltage range of 21.6-26.4V and a nominal voltage of 24 Vdc. The output voltage is ±12V with an output current of ±42/±5(mA) and a wattage of 1W. The module features isolation of 1.5kVdc and comes in a SIP package.
Package Includes: 1 x A2412S-1WR3 Mornsun 24V to ±12V DC-DC Converter 1W Power Supply Module - SIP Package
Download the datasheet for more information.
* Images are for illustration only; actual product may vary.
