A1215S-1WR2 Series
Designed for distributed power supply systems with high efficiency and compact design.
- I/p Voltage range: 10.8-13.2
- Nominal voltage: 12 Vdc
- O/p voltage: +15V, -15V
- O/p current: +-34/4 (mA)
- Wattage: 1W
- Isolation: 1.5kVdc
- Package: SIP
Features:
- High power density
- High efficiency up to 80%
- Operating ambient temperature range: -40°C to +105°C
- Ultra compact SIP package
The A1215S-1WR2 series is ideal for pure digital circuits, low frequency analog circuits, relay-driven circuits, and data switching circuits. It is suitable for applications where the input power supply voltage is relatively stable with a variation of ±10%Vin or less, and an input to output isolation voltage of up to 1500VDC is necessary. The requirement for tight output regulation is not as strict.
The module is UL60950/EN60950 Approved and has an I/O isolation test voltage of 1.5kVDC.
Package Includes:

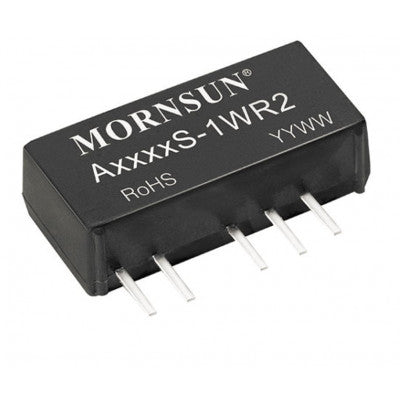

- 1 x A1215S-1WR2 Mornsun 12V to ±15V DC-DC Converter 1W Power Supply Module - Ultra Compact SIP Package
Images are for illustration only; actual product may vary.
