A0505S-2WR2 Series
Designed for distributed power supply systems with high efficiency and I/O isolation.
- I/p Voltage range: 4.5-5.5
- Nominal voltage: 5 Vdc
- O/p voltage: ±5V
- O/p current: ±200/20(mA)
- Wattage: 2W
- Isolation: 1.5kVdc
- Package: SIP
Features:
- High power density
- High efficiency up to 86%
- Operating ambient temperature range: -40°C to +105°C
- No external components required
The A0505S-2WR2 series is ideal for use in distributed power supply systems, especially in applications such as pure digital circuits, low-frequency analog circuits, relay-driven circuits, and data switching circuits. It is designed for scenarios where the input power supply voltage is relatively stable with a variation of ±10%Vin or less, and an input to output isolation voltage of up to 1500VDC is necessary. The module also meets the requirement for a tight output regulation, though not as strict.
The module comes in a miniature SIP package with an industry-standard pin-out and an I/O isolation test voltage of 1.5kVDC. It is approved by IEC60950/UL60950/EN60950.
Package Includes:

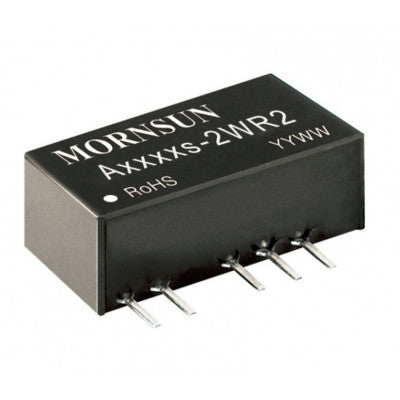

- 1 x A0505S-2WR2 Mornsun 5V to ±5V DC-DC Converter 2W Power Supply Module - Miniature SIP Package
Download the datasheet for more information.
Images are for illustration only; actual product may vary.
