915Mhz 100mW Radio Telemetry Kit
A reliable telemetry kit compatible with Ardupilot and Pixhawk-based systems.
- Frequency: 915MHz
- Rated Power: 100mW
- Range: 1600m
- Receive Sensitivity: -117dBm
- Air Data Rates: 250kbps
- Operating Temperature: -10 to 85°C
- Weight: 65g
Top Features:
- Small size and lightweight
- CP2102 high-quality USB to TTL chips
- Supports MWC / APM / PX4 / Pixhawk
- MAVLink Framework Agreement

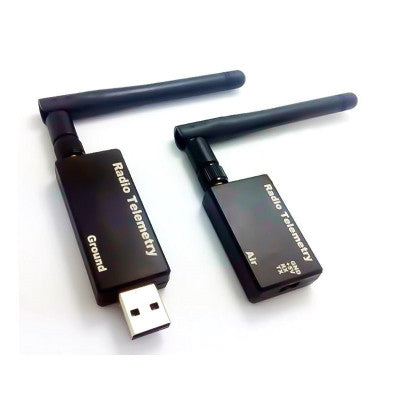

This 915Mhz 100mW Radio Telemetry Kit is based on the 3DR Telemetry kit and is 100% compatible with the same firmware onboard. It is designed for use with Ardupilot or Pixhawk-based systems, providing a two-way telemetry connection between your drone and ground station. The kit includes air and ground modules that are interchangeable, each with a USB connector and a DF13 connector.
The firmware used by 3D Robotics is open-source, ensuring functionality and reliability. The kit comes with full support and warranty from Unmanned Tech. The kit features a frequency-hopping spread spectrum, 2-way full-duplex communication, and adaptive TDM for stable data transmission.

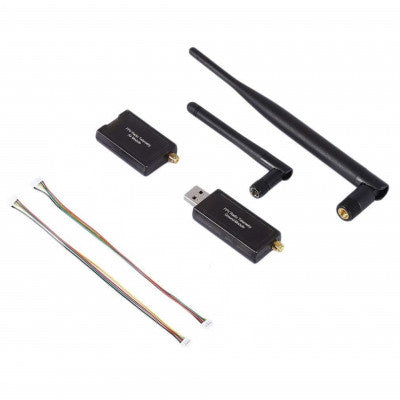

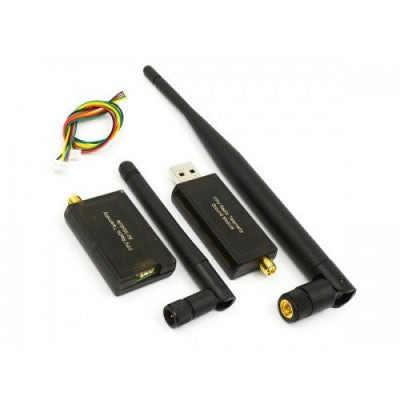

For easy connection to Pixhawk, it is recommended to purchase a 6-pos to 6-pos cable. The kit includes 1 x 3DR Radio Telemetry with the case (Air+Gnd module), 2 x cables (APM/PIX), and 2 x 3.5dbi antennas. Please note that the telemetry is only compatible with APM compatible control boards.
As the color of the connecting cable may vary, it will be shipped randomly to customers.
*Images are for illustration only; actual product may vary.*
