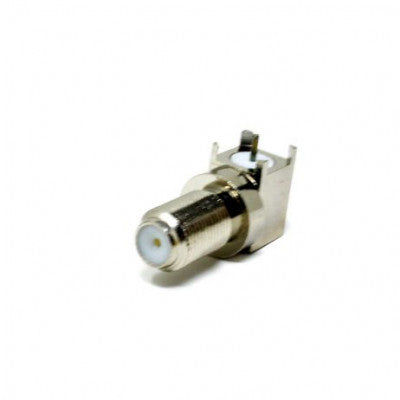

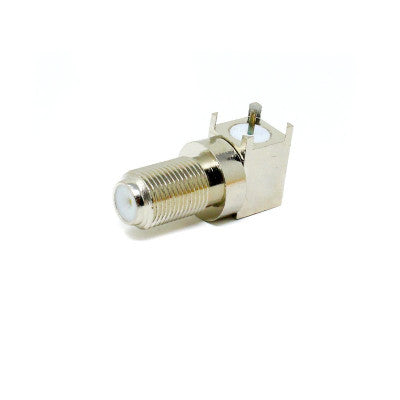

90 Degree F Type Connector Female Bulkhead For PCB Mount
Designed for terminating industry-standard 50 ohm and 75-ohm cables with durability and perfect design.
- Brand: ElecBee
- Orientation: Right Angle
- Gender: Female
- Mounting Type: PCB Mount / Panel Mount
- Termination Style: Solder Type
- Mounting Feature: Bulkhead / Through Hole
- Polarity Standard: Standard
- Body Material: Copper
- Body Plating: Nickel Plating
- Impedance: 75 ohms
- Shield Termination: N/A
Top Features:
- PCB Mount, Female
- Angled/90, 75 ohm
- Compact Design, Easy Installation
- Quick Connect and Disconnect
These connectors are ideal for Consumer Electronics like Satellite Boxes and set-top boxes, as well as Telecommunications use in CATV and CATV Networks.
Electrical Characteristics:
- Impedance: 75 ohm
- Frequency Range: 0~3Ghz
- VSWR: Straight type 1.2max / R/A type 1.3max
- Withstanding Voltage: 500 V rms
- Working Voltage: 170 V rms
- Center Contact Resistance: 10 m
- Outer Contact Resistance: 5 m
- Insulation Resistance: 1000 m
- RF Leakage: -100dB min @1GHz
Mechanical Characteristics:
- Coupling: 3/8-32 thread
- Cable Retention: 20 lbs min.
- Durability (mating): 500 cycles
Environmental Characteristics:
- Temperature Range: -40C ~ +60C

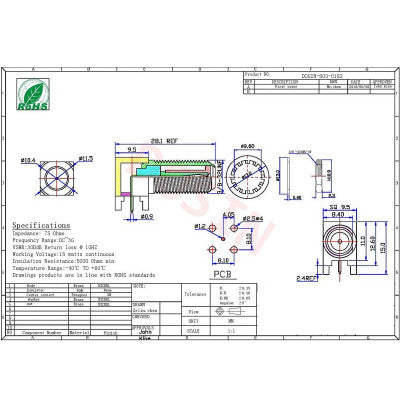

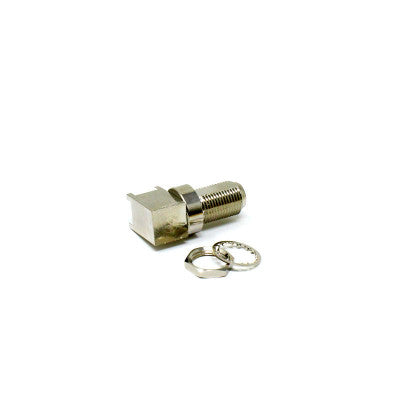

Package Includes: 1 x 90 Degree F Type Connector Female Bulkhead For PCB Mount
*Images are for illustration only; actual product may vary.
