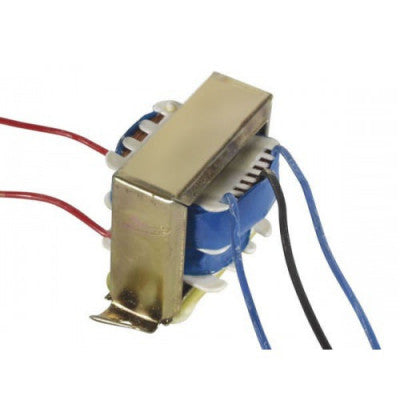

9-0-9 750mA Center Tapped Step Down Transformer
A general purpose chassis mounting mains transformer with 230V primary winding.
- Input Voltage: 230V AC
- Output Voltage: 9V, 9V or 0V
- Output Current: 750mA
- Mounting: Vertical mount type
Top Features:
- Soft Iron Core
- 750mA Current Drain
The 9-0-9 750mA Center Tapped Transformer is designed to act as a step-down transformer, reducing AC from 230V to 9V. It has a center-tapped secondary winding with flying colored insulated connecting leads (approximately 100mm long).
The transformer's construction includes a solid core and winding. It is a static electrical device that transfers energy through inductive coupling between its winding circuits. The cores are made of high permeability silicon steel, which greatly reduces magnetizing current and confines the flux to closely couple the winding.
A varying current in the primary winding creates a varying magnetic flux in the core, inducing a varying electromotive force (E.M.F) or voltage in the secondary winding.
Applications:
- DIY projects requiring high current drain
- On-chassis AC/AC converter
- Designing a battery charger
*Images are for illustration only; actual product may vary.
