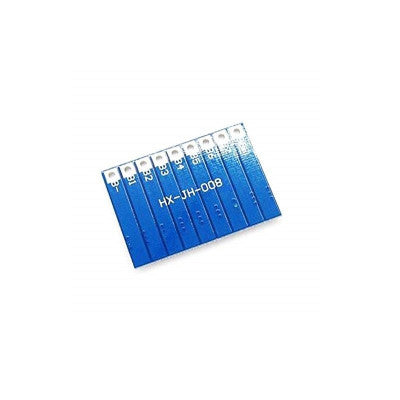

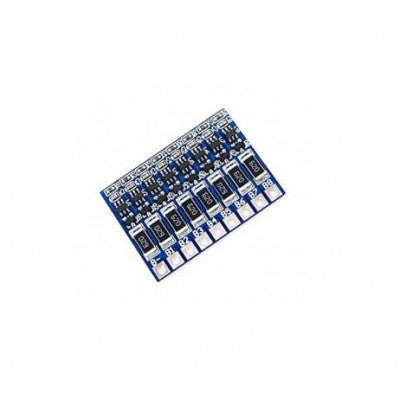

8S 29.6V Li-ion Lipo Balancer Board
Keep your lithium battery pack balanced with this efficient balancer board.
- Type: Voltage Regulator
- Supply Voltage: 29.6V
- Dissipation Power: 18650 Lithium Battery Balanced Function Board
- Operating Temperature: Discharge Shunt balanced 4.2V 66mA
- Application: 8s Lithium Battery Balanced Function Board
- Product Size: 37.3 x 25.8 x 2.4mm
Features:
- Equalizes charge in lithium battery pack
- Ensures each series charges simultaneously
- Discharges first cell to wait for others to reach same voltage
- Compatible with 8S lithium battery packs
The balancer board is suitable for lithium battery packs without balance functions. It helps in equalizing the charge of lithium batteries, ensuring each series charges at the same time. The balancer acts as an auxiliary function, ensuring that each series battery has the same voltage during charging.
Note: Battery internal resistance differences should be within 5 milliohms, voltage within 0.03V, and capacity varying within 50mA. Cut-off Voltage is as per the BMS setting.

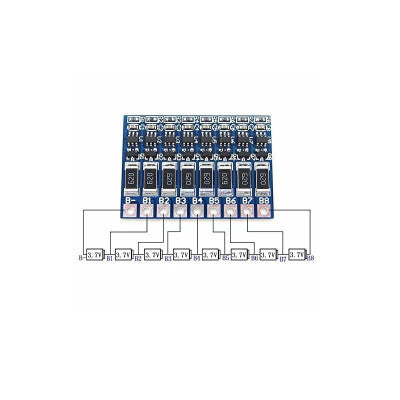

8S Connection Instruction:
- B Connect the negative of the battery pack
- B1 Connect battery 1 to the contacts in battery 2
- B2 Connect battery 2 to the contacts in battery 3
- B3 Connect battery 3 to the contacts in battery 4
- B4 Connect battery 4 to the contacts in battery 5
- B5 Connect battery 5 to the contacts in battery 6
- B6 Connect battery 6 to the contacts in battery 7
- B7 Connect battery 7 to the contacts in battery 8
Package Includes: 1 x Lithium Battery Equalizer Board
Images are for illustration only; actual product may vary.
