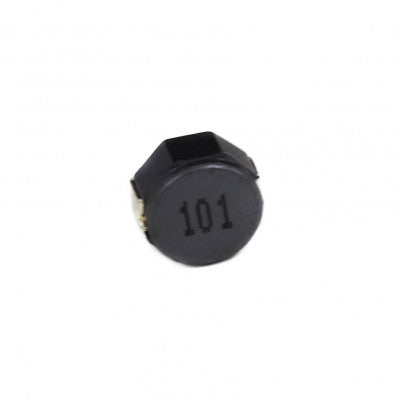

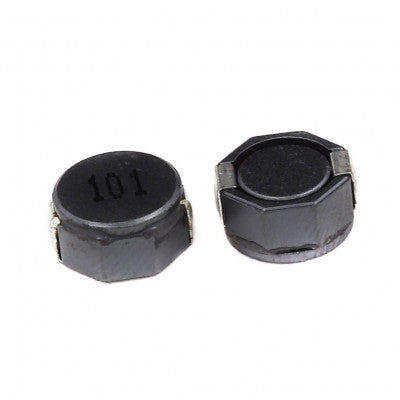

100uH 2A SMD Power Inductor
A compact surface mount device with ferrite drum core and high moisture resistance.
- Inductance(H): 100uH
- Mounting Type: SMD/SMT
- Material Core: Ferrite
- Tolerance(%): 30
- DC Resistance (DCR)(m?) at 20°C: 360
- Current Rating (A): 1.3
- Frequency (kHz): 100
- Operating Temperature Range (C): -40 to 100
- Length (mm): 9
- Width (mm): 8
- Height (mm): 4.2
- Weight (gm): 1 (approx) (each)
Top Features:
- Ferrite drum core construction
- Compact in size
- Magnetic shield
- Moisture resistant
The 100uH 2A SMD power inductor is a surface mount device featuring a ferrite drum core with a wire wound around it. It is equipped with a magnetic shield and is RoHS compliant, ensuring high moisture resistance. This power inductor is ideal for use in mobile phones, MP3 players, PDAs, HDDs, DSCs/DVCs, etc., serving as DC-DC converter inductors. It comes with pads for easy surface mounting.
Package Includes: 1 x 100uH 2A SMD power inductor
* Images are for illustration only; actual product may vary.
