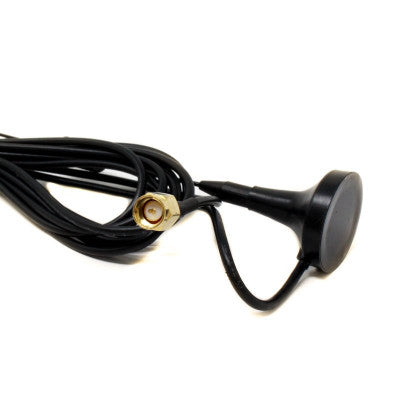

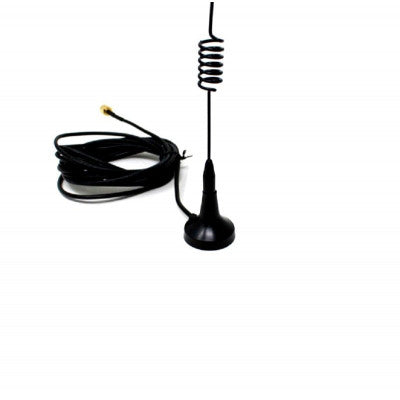

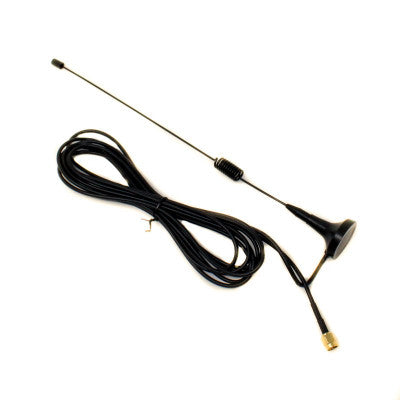

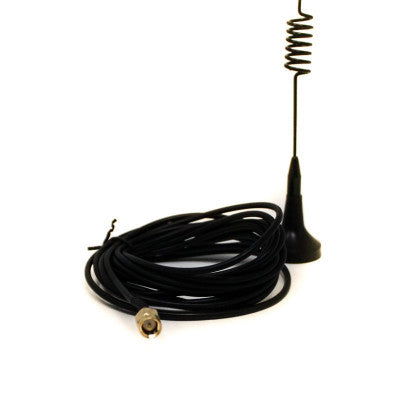

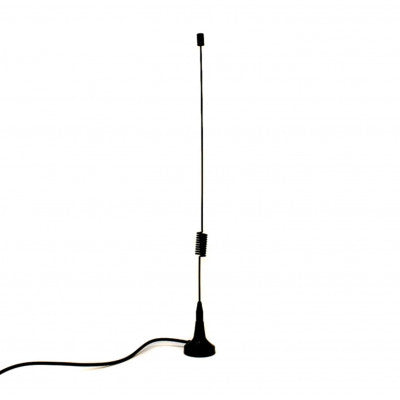

Magnetic Dual-Band Mount Antenna
A compact and low-cost antenna for GSM and 3G applications.
- Frequency: 824-960 MHz & 1710-2170 MHz
- Gain: 4/6 dBi
- Impedance: 50
- VSWR: < 2.0
- Polarization: Linear
- Power Handling: 10W
- HPBW: H: 360°; V: 300/400°
- Cable: RG174
- Connector: SMA Male Plug
- Operational Temperature: -30 to 60°C
- Humidity: 5-75%
- Housing: Carbon Steel Powder Coated
- Dimension: 280 x 27 mm
- Weight: 100gm
- Cable Length: 3 meters
Top Features:
- Compact Size
- Low Cost
- SMA Male Connector
- Supports cable lengths <5m
This antenna is supported for GSM FCT and other GSM Module/Modems. The biggest advantage of dual-band antennas is their ability to provide a strong, stable wireless connection in often difficult to reach locations. They are commonly used in devices such as cellular or dual-band wireless access points.
Package Includes: 1 x 824-960 MHz & 1710-2170 MHz Dual-Band 4/6 dBi Magnetic Mount Antenna
* Images are for illustration only; actual product may vary.
