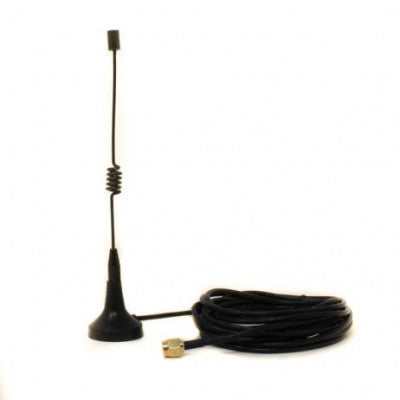

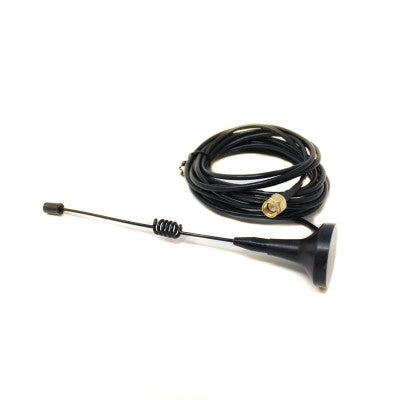

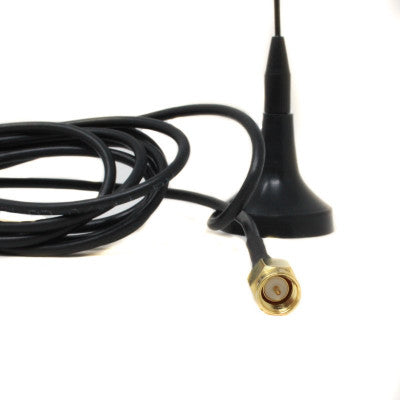

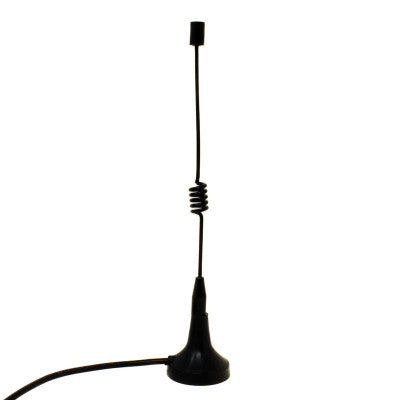

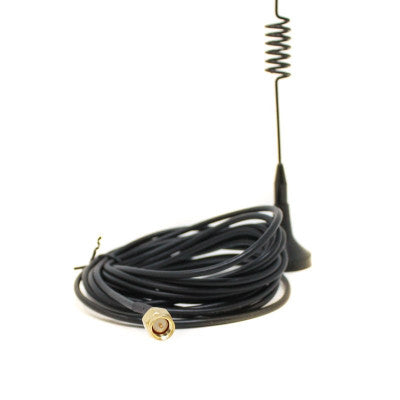

Magnetic Dual-Band Mount Antenna
A compact and low-cost antenna for GSM and 3G applications.
- Frequency: 824-960 MHz & 1710-2170 MHz
- Gain: 2/3 dBi
- Impedance: 50
- VSWR: 2.5
- Polarization: Linear
- Power Handling: 10W
- HPBWH: H: 3600, V: 300/400
- Cable: RG174
- Operational Temperature: -30 to 60°C
- Humidity: 5-75%
- Housing: Carbon Steel Powder Coated
- Dimension: 200 x 30 mm
- Weight: 75g
- Cable Length: 3 meters
Top Features:
- Compact Size
- Low Cost
- Supports GSM FCT of Micromax
- Stable wireless connection in difficult locations
The Magnetic Dual-Band Mount Antenna operates at frequencies of 824-960 MHz & 1710-2170 MHz with a gain of 2/3 dBi. It is designed to support GSM FCT of Micromax and other GSM Module/Modems. The antenna's dual-band capability ensures a strong and stable wireless connection, making it ideal for applications in GSM and 3G technologies.
With a compact size and low cost, this antenna is a cost-effective solution for improving signal strength in challenging environments. The package includes 1 x 824-960 MHz & 1710-2170 MHz Dual-Band 2/3 dBi Magnetic Mount Antenna, suitable for cable lengths under 5 meters.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com or call us at +91-8095406416.
* Images are for illustration only; actual product may vary.
