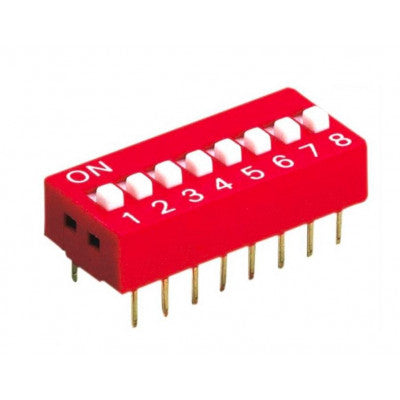

8 Way DIP Switch
An electronic component for easily controlling input to electronic devices.
- No of Pins: 8 way
- Type: DIP (Dual-In-Line)
- Max Operating Voltage: 50 VDC
- Max Current (Carrying Capacity): 150 mA DC
- Max Switching: 0.8 W
- Contact Resistance: <100 mΩ
- Insulation Resistance (at 100 VDC): >100 mΩ
- Test Voltage (1 minute): 500 VAC
- Life Expectancy: 1000 operations
- Operating Temperature: -20 to +80 C
- Mounting Type: Through Hole
- Pitch: 2.54 mm
Top Features:
- 8 position DIP switch
- SPDT slide switch
- Compact housing
- Easy mounting on PCBs
An electronic switch is an electronic component or device that can switch an electrical circuit, interrupting the current or diverting it from one conductor to another. The 8 position or 8 in 1, Dual In-Line Package (DIP) SPDT slide switch, namely the more traditional toggle switch, is a set of electrical switches packed in a small box or housing. This DIP single pole double throw (SPDT) switch forces the operator to choose between connecting to either one of two terminals, ensuring that the switch will remain connected to one or the other, and the two terminals will never be connected. This switch is designed to be easily mounted on printed circuit boards to provide various ranges of input to the electronic device. You can easily control the input by using the DIP switch.
Package Includes:
- 1 x 8 Way DIP Switch
* Images are for illustration only; actual product may vary.
