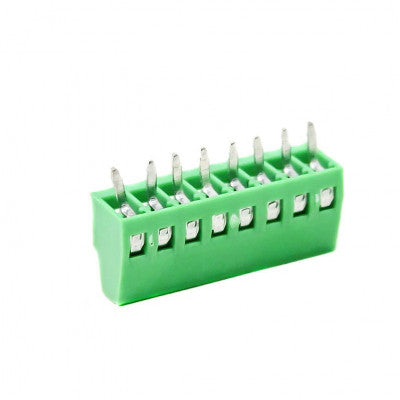

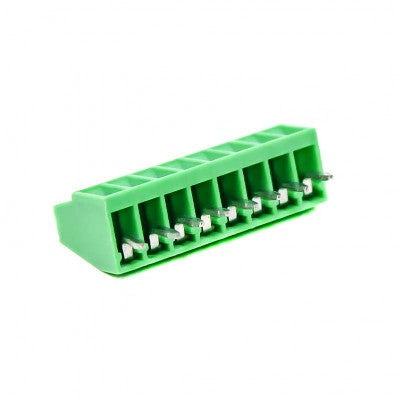

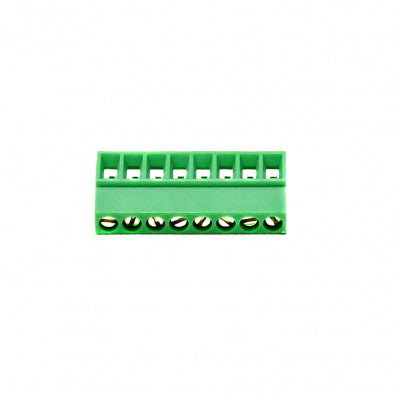

8 Pin 2.54mm Pitch Pluggable Screw Terminal Block
A compact and versatile terminal block for connecting wires to PCBs.
- Connector: PCB Terminal Block
- Termination: Screw
- No. of Contacts: 8
- Voltage(V): 320
- Allowed Wire Size (AWG): 22 ~ 18
- Operating Current (A): 6
- Mounting Type: Through Hole
- Pin Spacing (mm): 2.54
- Material: Metal and plastic
- Length (mm): 21
- Width (mm): 6
- Height (mm): 12
- Weight (gm): 3
Features:
- Saves space due to the small design
- Screw connection with tension sleeve
- Maximum contact force ensures a low-temperature rise
- Connection in accordance with EN-VDE Standard
This terminal block is ideally suited to miniature rack systems or telecoms equipment, which demand high contact density. As each terminal has a single corresponding pin spaced every 0.1 (2.54mm), these terminal blocks can be used with prototyping boards and PCB holes intended for standard 0.1 male and female headers (if there is sufficient clearance from nearby components).
It has screws to keep the wires in place and can hold wires from 14 to 22 AWG.
Package Includes: 1 x 8 Pin 2.54mm Pitch Pluggable Screw Terminal Block.
Images are for illustration only; actual product may vary.
