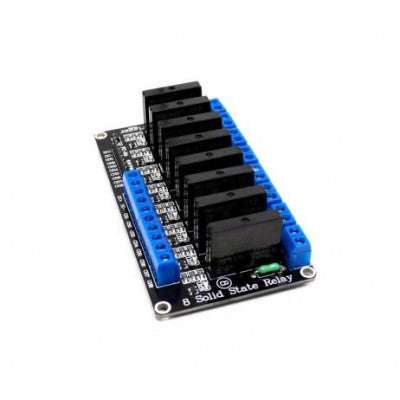

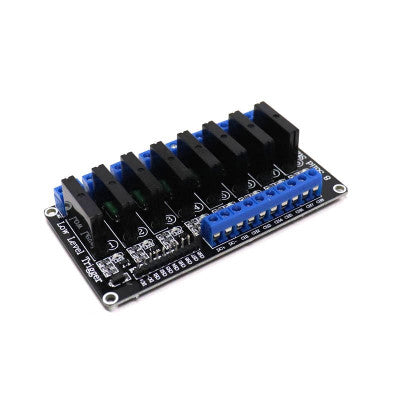

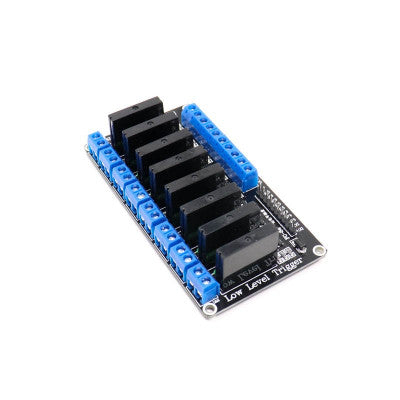

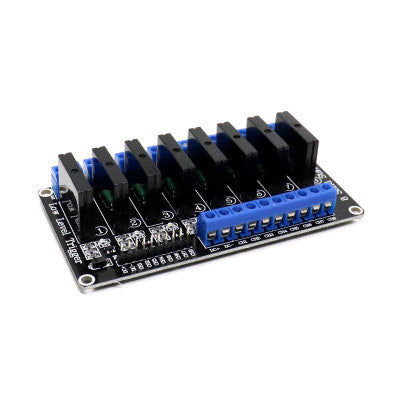

8 Channel 5V SSR G3MB-202P Solid State Relay Module (Low level Trigger)
Control up to 2A at 240VAC with this 8 channel SSR relay module.
- Trigger type: Low Level Trigger
- Part Number: G3MB-202P
- Working Current(mA): 16
- Trigger Current (mA): 2
- Trigger Voltage (VDC): 5
- Switching Voltage (VAC): 240 @ 2A
- Isolation: Phototriac
- Zero Cross: Yes
- Length (mm): 130
- Width (mm): 60
- Height (mm): 15
- Weight (gm): 70
Top Features:
- 8 channel 2 AMP Solid State Relay board
- Control 8 loads of up to 2 amps each at 120V or 240V AC
- Assembled and electrically tested
- Led indicator for each relay
This 8 Channel SSR relay module is designed for controlling various appliances and equipment with large current. It can be directly controlled by Arduino and other microcontrollers. The module has 3 separate terminals for each relay channel: NO (Normal Open), COM (Common), NC (Normal Closed).
When the input logic voltage is applied to the coil, the NC disconnects from the COM, breaking the conductivity between them. Simultaneously, the NO connects with the COM, allowing conductivity between them, turning on or off the connected load based on your wiring.
The relay module requires DC+ and DC- for power, and each channel has an effective low-level trigger for signal control. Please ensure the power voltage is consistent with the relay voltage. The board is available in Red Color.
Package Includes: 1 x 5V 8 Channel SSR Solid State Relay Module
