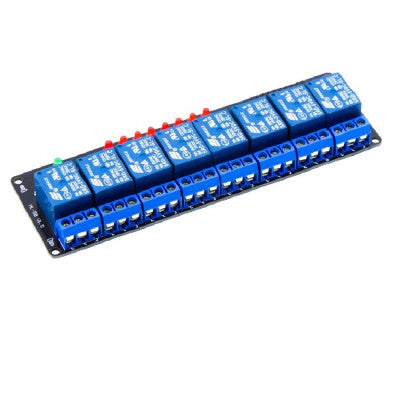

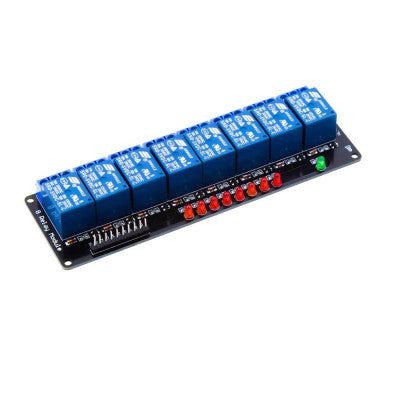

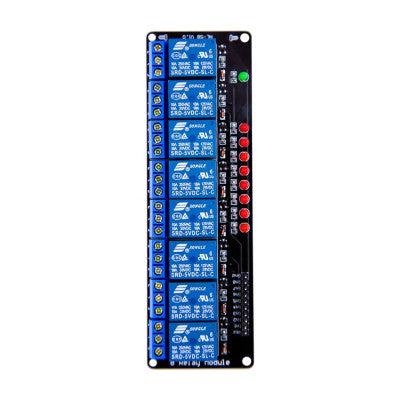

5V 8 Channel Relay Module
A versatile relay module with 8 channels and various features for easy control.
- Operating Voltage: 3 ~ 5 VDC
- Trigger Voltage: 5 VDC
- Switching Voltage (AC): 250V @ 10A
- Switching Voltage (DC): 30V @ 10A
- Storage Condition: -65 to 125°C
- Operating Temperature: -40 to 85°C
- Length: 138 mm
- Width: 43 mm
- Height: 17 mm
- Weight: 100 gm
Top Features:
- 8550 transistor drive for enhanced drivability
- Fixed bolt holes for easy installation
- Relay status indicator LEDs for easy monitoring
- Single-chip IO control interface for convenience
The 5V 8 Channel Relay Module is designed with a fault-tolerant feature that ensures the relay will not move even if the control line is disconnected. Each channel can be easily triggered by setting a high or low level using jumpers. The module has a trigger current of 5mA and a working voltage of DC 5V. The status indicators, including power (green) and 6-channel relay status (red), provide visual feedback.
All module size interfaces can be directly connected through the terminal block, making it convenient and practical to use. With a low-level suction close and high-level release, this module offers a simple 3-line structure for easy operation.
Package Includes: 1 x 5V 8 Channel Relay Module
* Images are for illustration only; actual product may vary.
