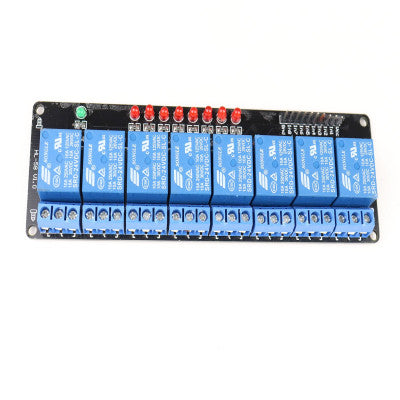

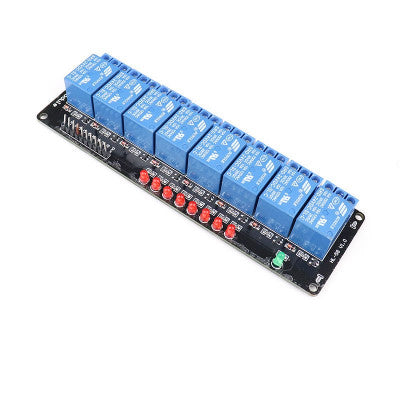

8 Channel Relay Board (24VDC)
A versatile relay board for high-current electrical load switching.
- Channel: 8
- Trigger Voltage (VDC): 24
- Trigger Current (mA): 20
- Switching Voltage (VAC): 250 @ 10A
- Switching Voltage (VDC): 30 @ 10A
- Operating Temperature (C): -40 to 85
- Opt. Relative Humidity(RH): 20% - 85%
- Storage condition: -65 to 125
- Length (mm): 138
- Width (mm): 43
- Height (mm): 17
- Weight (gm): 100
Top Features:
- Header connector for power and trigger voltage
- LED on each channel for relay status
- Screw terminal connector for easy wiring
This 8-channel relay board is designed for switching high-current loads like motors, lights, pumps, and contactors. It can be activated by logic-level signals ranging from 3V to 30V, making it compatible with various microcontrollers such as PIC, AVR, ARM, Raspberry Pi, and Arduino.
Package Includes: 1 x 24V 8 Channel Relay Module.
* Images are for illustration only; actual product may vary.
