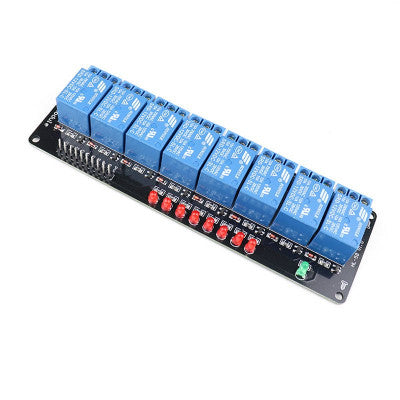

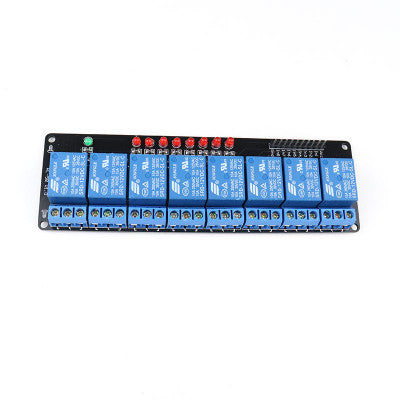

12V 8-Channel Relay Interface Board
Control various appliances and equipment with large current using this relay board.
- Trigger Voltage (VDC): 12
- Trigger Current (mA): 20
- Switching Voltage (VAC): 250 @ 10A
- Switching Voltage (VDC): 30 @ 10A
- Operating Temperature (C): -40 to 85
- Opt. Relative Humidity(RH): 20% - 85%
- Storage Condition (): 65 to 125
- Length (mm): 138
- Width (mm): 43
- Height (mm): 17
- Weight (gm): 98
Features:
- High-current relay, AC250V 10A DC30V 10A.
- Independent wiring, safe and reliable.
- Standard interface for easy installation.
- Suitable for various development boards.
Be able to control various appliances and other equipment with large current. It can be controlled directly by Micro-controller (Arduino, 8051, AVR, PIC, DSP, ARM, MSP430, TTL logic).
Package Includes: 1 x 8 Channel 12V Relay Module
*Images are for illustration only; actual product may vary.
