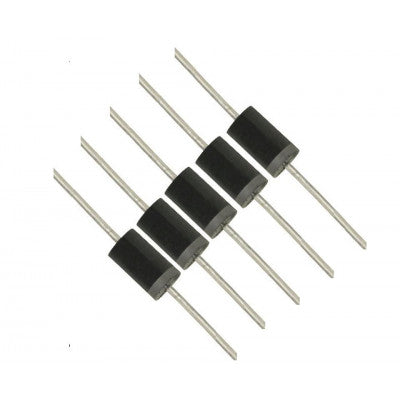

8.2V 5W 1N5344B Zener Diode
A sharply break down voltage diode for voltage regulation applications.
- Nominal Zener Voltage (Vz): 8.2V
- Max. Regulator Current (Izm): 0.580A
- Max. Reverse Leakage Current (Ir): 1µA
- Total Power Dissipation (Ptot): 5W
- Package Includes: 5 x 8.2V 5W 1N5344B Zener Diode
Top Features:
- Sharp breakdown voltage
- Allows current flow in both directions
- Used for voltage regulation
The Zener diode is a sharply break down voltage diode which allows current to flow in the forward direction in the same manner as an ideal diode, but also permits it to flow in the reverse direction when the voltage is above a certain value known as the breakdown voltage.
* Images are for illustration only; actual product may vary.
