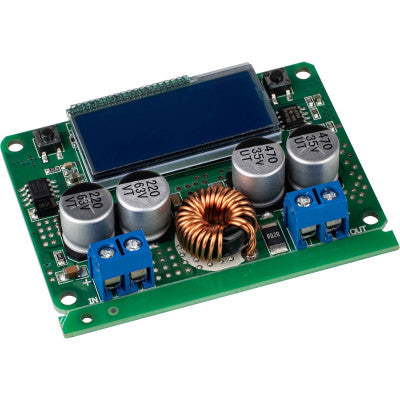

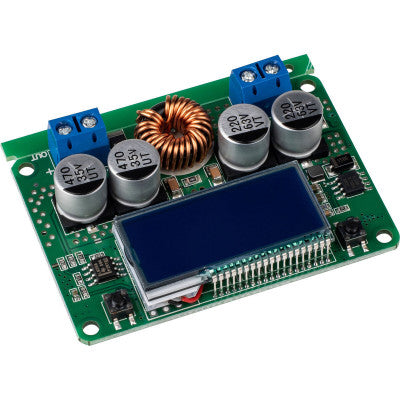

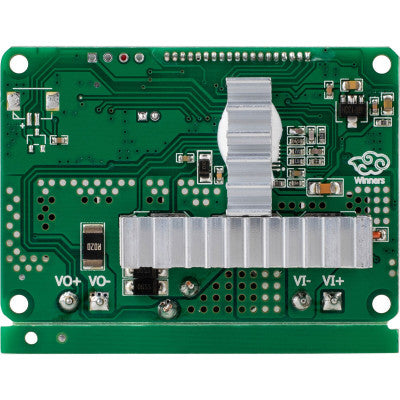

7A DC 60V Adjustable Step-Down Regulator Module LCD Display With Case

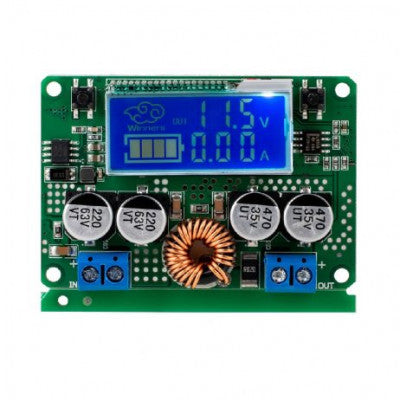

Digital display of output voltage and current draw for monitoring and safety
- Output Voltage: 0~16.5V adjustable (Automatically saves last set voltage)
- Peak Current: Recommended use in 2A, accuracy of 1%
- Conversion Efficiency: 95%
- Load Regulation S(I): 0.8%
- Voltage Regulation S(U): 0.8%
- Size: 62 x 44 x 18mm
- Weight: 45g
Top Features:
- Input Voltage: 8-60V, output voltage: 3V-32V
- Output current: maximum 7A, recommended use within 5A
- Short circuit protection and anti-anti-input
- Accuracy of 1%, conversion efficiency up to 95%
The down converter accepts a 60V AC/DC adapter, but we recommend a 36 VDC 5A adapter since the output is up to 32 VDC. Built-in short circuit protection for safe voltage down conversion.
Calibration instructions: The module has a calibration function to ensure accurate measurements. Follow the steps for voltage and current calibration to maintain precision.
Package Includes: 1 x 7A DC 60V Adjustable Step-Down Regulator Module LCD Display With Case
* Images are for illustration only; actual product may vary.
