74LS573 3-State Octal D-Type Latch IC (74573)
High-speed octal latch with buffered LE and OE inputs
- Supply Voltage: 4.75 to 5.25V
- High Level Input Voltage: 2V
- Low Level Input Voltage: 0.8V
- High Level Input Current: -2.6V
- Low Level Output Current: 24V
- Free Air Operating Temperature: 70°C

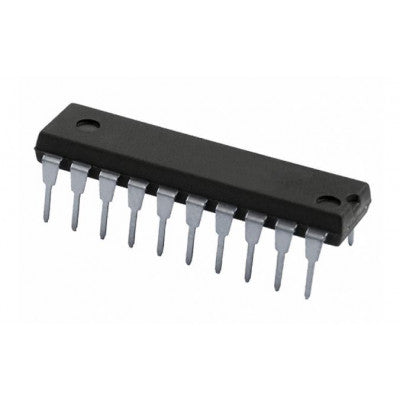

- Package Includes: 1 X 74LS573 3-State Octal D-Type Latch IC (74573) DIP-20 Package
Features:
- Inputs and outputs on opposite sides for easy microprocessor interface
- Can be used as input or output port for microprocessors
- Functionally identical to ’LS373
- Input clamp diodes for limiting high-speed termination effects
The ’LS573 is a high-speed octal latch with buffered common Latch Enable (LE) and buffered common Output Enable (OE) inputs. It is functionally identical to the ’LS373 but has different pinouts. This device is fully TTL and CMOS compatible.
