74LS399 Quad 2-Port Registers
Quad 2-Port Registers with Selectable Data Sources and Edge-Triggered Operation
- Supply Voltage Min: 4.75V
- Supply Voltage Max: 5.25V
- Operating Ambient Temperature Range Max: 70°C
- Output Current — High Max: -0.4mA
- Output Current — Low Max: 8.0mA
- Power Supply Current: 13mA

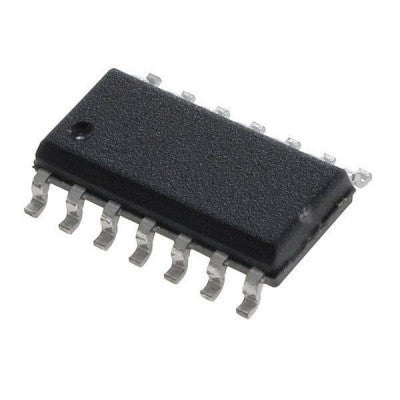

- Package Includes: 1 X 74LS399 IC - (SMD Package) - Quad 2-Port Register IC (74399 IC)
Top Features:
- Fully Positive Edge-Triggered Operation
- Select From Two Data Sources
- Input Clamp Diodes for High-Speed Termination Effects
The 74LS399 are Quad 2-Port Registers, functioning as a quad 2-input multiplexer and a quad 4-bit edge-triggered register. A Common Select input allows choosing between two 4-bit input ports. The selected data transfers to the output register on the LOW-to-HIGH Clock input transition. The 74LS398 includes Q and Q inputs, while the 74LS399 features only Q outputs.
