74LS379 4-Bit Register with Buffered Common Enable
A versatile 4-bit register with buffered common enable for efficient data storage.
- Supply Voltage: 4.75 - 5.25V
- Input HIGH Voltage: 2.0V
- Input LOW Voltage: 0.8V
- Input Clamp Diode Voltage: -1.5V
- Output HIGH Voltage: 3.5V
- Output LOW Voltage: 0.5V
Features:
- 8-Bit High Speed Parallel Registers
- Positive Edge-Triggered D-Type Flip Flops
- Fully Buffered Common Clock and Enable Inputs
- True and Complement Outputs
This device, similar to the 74LS175, offers a buffered common enable instead of a common master reset. It is designed with input clamp diodes to limit high-speed termination effects.
Package Includes:

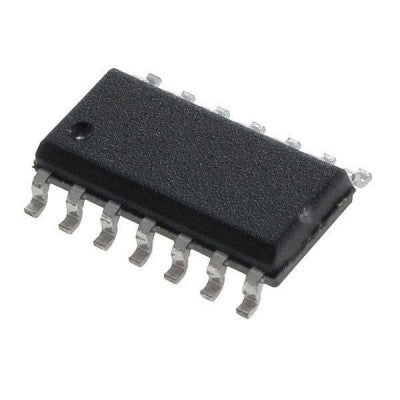

- 1 X 74LS379 IC - (SMD Package) - Octal D Flip-Flop IC (74379 IC)
* Images are for illustration only; actual product may vary.
