74LS365 3-State Hex Buffers IC (74365)
Six independent gates with non-inverting buffer function and 3-STATE feature.
- Supply Voltage: 4.75 - 5.25V
- Input HIGH Voltage: 2.0V
- Input LOW Voltage: 0.8V
- High Level Output Current: -2.6mA
- Low Level Output Current: 24mA
- Free Air Operating Temperature: 70°C

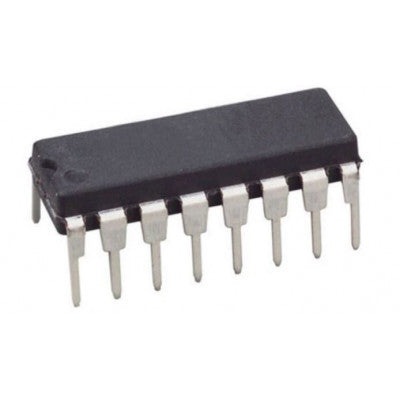

- Package Includes: 1 X 74LS365 3-State Hex Buffers IC (74365) DIP-16 Package
Top Features:
- Non-inverting buffer function
- 3-STATE feature for output control
- High drive capability for bus lines
- Short disable time to prevent bus conflicts
The 74LS365 IC contains six independent gates, each functioning as a non-inverting buffer. It features a 3-STATE output, providing low impedance characteristics when enabled, allowing driving of bus lines without external resistors. When disabled, the output transistors are turned off, presenting a high-impedance state to the bus line, acting neither as a load nor a driver. The disable time is shorter than the enable time to prevent conflicts on bus lines.
For more details or bulk pricing inquiries, contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
