74LS323 8-Bit Universal Shift/Storage Register
An 8-bit shift/storage register with 3-state outputs and synchronous reset.
- Supply Voltage: 4.75 - 5.25V
- Input HIGH Voltage: 2.0V
- Input LOW Voltage: 0.8V
- Input Clamp Diode Voltage: -1.5V
- Power Supply Current: 53mA
Top Features:
- Common I/O for Reduced Pin Count
- Four Operation Modes: Shift Left, Shift Right, Parallel Load, and Store
- Separate Continuous Inputs and Outputs from Q0 and Q7 for Easy Cascading
- Fully Synchronous Reset
The 74LS323 is an 8-Bit Universal Shift/Storage Register with 3-state outputs. It functions similarly to the 74LS299 but lacks Synchronous Reset. The parallel load inputs and flip-flop outputs are multiplexed to reduce pin count. It offers separate inputs and outputs for flip-flops Q0 and Q7, enabling easy cascading. The device supports four operation modes: hold (store), shift left, shift right, and parallel load. All modes are triggered on the LOW-to-HIGH transition of the Clock.

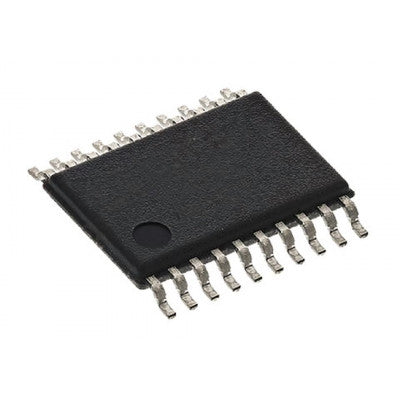

The 74LS323 package includes 1 X 74LS323 IC in SMD packaging. This 3-Stage 8-Bit Universal Shift/Storage Register IC (74323 IC) is a versatile component for various applications.
Images are for illustration only; actual product may vary.
