74LS298 Quad 2-Port Register
Quad 2-Port Register with Edge-Triggered Operation
- Supply Voltage: 4.75 - 5.25V
- Input HIGH Voltage: 2.0V
- Input LOW Voltage: 0.8V
- Input Clamp Diode Voltage: -1.5V
- Output LOW Voltage: 0.5V
- Short Circuit Current: -100mA

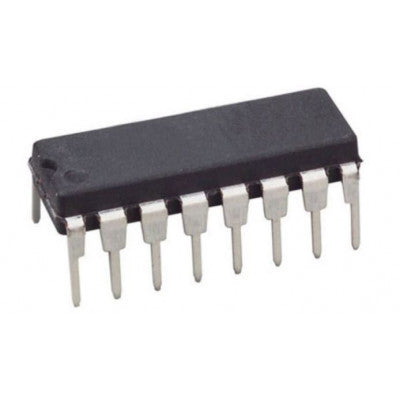

- Package Includes: 1 X 74LS298 Quad 2-Input Multiplexer IC (74298) DIP-16 Package
Top Features:
- Fully Edge-Triggered Operation
- Low Power Dissipation (65mW)
- Input Clamp Diodes for Termination Effects
The 74LS298 is the logical equivalent of a quad 2-input multiplexer followed by a quad 4-bit edge-triggered register. A Common Select input chooses between two 4-bit input ports (data sources). The selected data is transferred to the output register synchronously with the HIGH to LOW transition of the Clock input. Fabricated with the Schottky barrier process for high speed, the LS298 is fully compatible with all ON Semiconductor TTL families.
