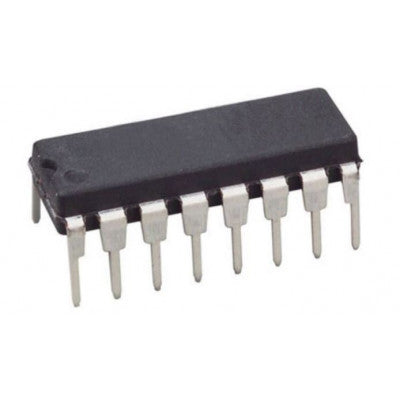

74LS258 3-State Quad 2-Input Multiplexer IC (74258)
Quad 2-Input Multiplexer with 3-state outputs
- Supply Voltage: 4.75 - 5.25V
- Input HIGH Voltage: 2.0V
- Input LOW Voltage: 0.8V
- Input Clamp Diode Voltage: -1.5V
- Output HIGH Voltage: 3.1V
- Output LOW Voltage: 0.5V
- Short Circuit Current: -130mA
Features:
- Schottky Process For High Speed
- Multiplexer Expansion By Tying Outputs Together
- Non-Inverting 3-State Outputs
- Input Clamp Diodes Limit High Speed Termination Effects
Four bits of data from two sources can be selected using a Common Data Select input. The four outputs present the selected data in true (non-inverted) form. The outputs may be switched to a high impedance state with a HIGH on the common Output Enable (EO) Input, allowing the outputs to interface directly with bus-oriented systems.
*Images are for illustration only; actual product may vary.
