74LS243 IC - 3-State Quad Bus Transceiver
A versatile transceiver for synchronous two-way data communication.
- Supply Voltage: 4.75 - 5.25V
- Input HIGH Voltage: 2.0V
- Input LOW Voltage: 0.8V
- HIGH Level Output Current: -15mA
- LOW Level Output Current: 24mA
- Free Air Operating Temperature: 70°C
- Package Type: SMD
Features:
- Two-way synchronous data communication
- PNP inputs reduce DC loading on bus line
- Hysteresis at data inputs for improved noise margin
This 74LS243 IC is designed for synchronous two-way communication between data buses. It facilitates driving terminated lines down to 133?, making it ideal for various applications.

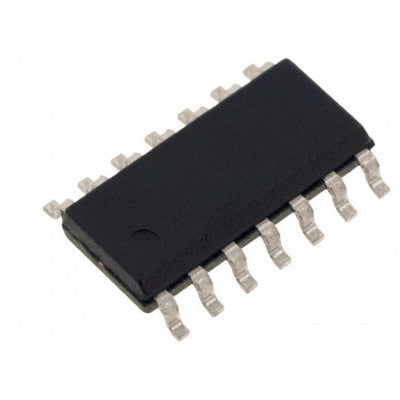

The package includes 1 X 74LS243 IC in SMD packaging, a 3-State Quad Bus Transceiver IC (74243 IC).
* Images are for illustration only; actual product may vary.
