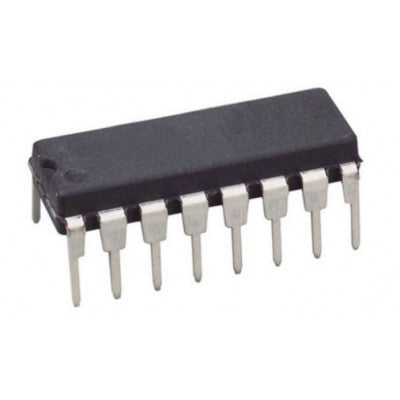

74LS151 8-Input Digital Multiplexer IC (74151)
Data selector/multiplexer with full on-chip decoding for selecting data sources.
- Supply Voltage: 4.75 - 5.25V
- LOW Level Input Voltage: 0.8V
- HIGH Level Output Current: -0.4mA
- LOW Level Output Current: 8mA
- Free Air Operating Temperature: 70°C
- Package Includes: 1 X 74LS151 8-Input Digital Multiplexer IC (74151) DIP-16 Package
Top Features:
- Select one-of-eight data lines
- Parallel-to-serial conversion
- Multiplexing from N lines to one line
- Boolean function generator
The 74LS151 selects one-of-eight data sources and has a strobe input that needs to be at a low logic level to enable the device. A high level at the strobe input forces the W output HIGH and the Y output LOW. It features complementary W and Y outputs.
Typical average propagation delay time from data input to W output is 12.5 ns, and the typical power dissipation is 30mW.
