74LS132 Quad 2-Input Schmitt Trigger IC
Four independent NAND gates with hysteresis for noise immunity and jitter-free output.
- Supply Voltage (VCC): 7 V
- Input Voltage (VI): 7 V
- Operating free-air temperature range: 0°C to +70°C
- Storage temperature range: -65°C to +150°C

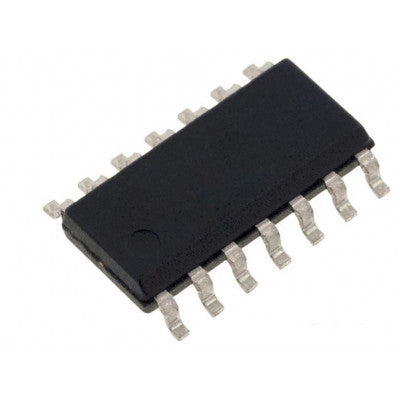

- Package Includes: 1 X 74LS132 IC - (SMD Package) Quad 2-Input Schmitt Trigger IC (74132 IC)
Features:
- Four Independent NAND Gates
- Each Input has Hysteresis for Noise Immunity
- Jitter Free Output
- Operating Temperature up to 70°C
The 74LS132 contains four independent gates, each performing the logic NAND function. The hysteresis on each input increases noise immunity and converts slowly changing input signals to fast-changing, jitter-free outputs.
Standard TTL switching voltages ensure compatibility with a wide range of systems and applications.
