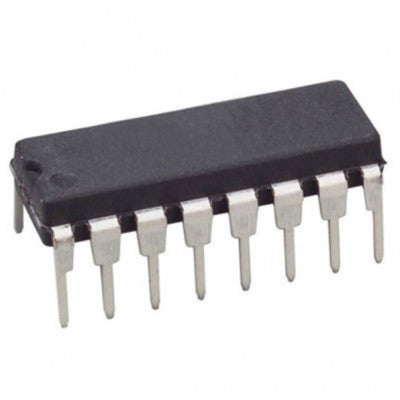

74LS123 Dual Retriggerable Monostable Multivibrator IC
A versatile IC for generating pulses of varying durations
- Package Type: DIP
- Multivibrator Type: Retriggerable Monostable
- Voltage Rating: 4.75 to 5.25V
- Current Rating: 8mA Output Current
- Temperature Rating: 0 to 70 Deg C
- Number of Pins: 16
- Propagation Delay: 23ns
Key Features:
- 16 Pin Dual IC
- Output pulses from nano-seconds to 100% duty cycle
- Internal timing resistors
- External capacitor compatibility
The 74LS123 is a 16 Pin Dual Retriggerable Monostable Multivibrator IC designed to operate at an ideal voltage range between 4.75V to 5.25V with an output current capacity of 8mA. This versatile IC can generate output pulses ranging from a few nano-seconds to extremely long durations with a 100% duty cycle, making it suitable for a wide range of applications. It comes with internal timing resistors, allowing the circuits to function efficiently with only an external capacitor.
With a temperature rating of 0 to 70 degrees Celsius, this IC ensures stable performance across varying environmental conditions. The 74LS123 DIP package includes 16 pins and boasts a propagation delay of 23ns, enabling precise signal timing in electronic circuits.
For detailed technical information, refer to the 74LS123 IC Datasheet.
* Images are for illustration only; actual product may vary.
