74LS109 Dual J-K Flip-Flop
Two independent J-K positive-edge-triggered flip-flops with versatile functionality
- Part number: 74LS109
- Technology Family: LS
- VCC (Min) (V): 4.75
- VCC (Max) (V): 5.25
- Bits (#): 2
- Voltage (Nom) (V): 5
- F @ nom voltage (Max) (MHz): 35
- ICC @ nom voltage (Max)(mA): 15
- tpd @ nom Voltage (Max) (ns): 35
- IOL (Max) (mA): 8
- IOH (Max) (mA): -0.4
- Rating: See Data Sheet
Top Features:
- Positive-edge-triggered
- Independent J-K flip-flops
- Versatile functionality
- Toggle and D-type flip-flop modes
The 74LS109 devices contain two independent J-K positive-edge-triggered flip-flops. A low level at the preset or clear inputs sets or resets the outputs regardless of the levels of the other inputs. When preset and clear are inactive (high), data at the J and K inputs meeting the setup time requirements are transferred to the outputs on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the clock pulse. Following the hold time interval, data at the J and K inputs may be changed without affecting the levels at the outputs. These versatile flip-flops can perform as toggle flip-flops by grounding K and tying J high. They also can perform as D-type flip-flops if J and K are tied together. The 74LS109 is characterized for operation from 0°C to 70°C.
The feature of 74LS109 is a package Options Include Plastic "Small Outline" Packages, Ceramic Chip Carriers and Flat Packages, and Plastic and Ceramic DIPs.
Related Document: 74LS109 IC Datasheet

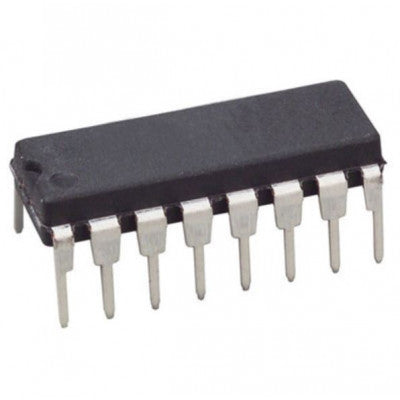

* Images are for illustration only; actual product may vary.
