74LS08 Quadruple 2-Input Positive AND Gate IC
Four independent 2-input AND gates in one IC package with military and standard temperature ranges.
- Operating Temperature (Military): -55°C to 125°C
- Operating Temperature (Standard): 0°C to 70°C
- Package Type: DIP-14
- Operating Speed: Fast
- Power Consumption: Low
- Features: Quadruple 2-Input AND Gate
- Available Packages: SOP, PDIP, SOIC
- Output: TTL compatible
Top Features:
- Fast operating speed
- Low power consumption
- Quadruple 2-Input AND Gate
- Simple to operate
The 74LS08 IC contains four independent 2-input AND gates. It operates over a wide temperature range, making it suitable for various applications. The pin configuration includes inputs, outputs, and power supply pins for each gate.
Specifications:
- Pin 1 (A1): First input of 1st AND gate
- Pin 2 (B1): Second input of 1st AND gate
- Pin 3 (Y1): Output of 1st AND gate
- Pin 4 (A2): First input of 2nd AND gate
- Pin 5 (B2): Second input of 2nd AND gate
- Pin 6 (Y2): Output of 2nd AND gate
- Pin 7 (GND): Ground pin
- Pin 8 (Y3): Output of 3rd AND gate
- Pin 9 (A3): First input of 3rd AND gate
- Pin 10 (B3): Second input of 3rd AND gate
- Pin 11 (Y4): Output of 4th AND gate
- Pin 12 (A4): First input of 4th AND gate
- Pin 13 (B4): Second input of 4th AND gate
- Pin 14 (VCC): Power supply pin
Applications:
- General-purpose AND gate logic
- Servers, ALU, digital electronics
- Memory units, networking devices
- Digital systems
The 74LS08 IC is versatile and cost-effective, suitable for various logic operations where AND gates are required. It offers high-speed operation and can be used in a wide range of temperature conditions.
Package Includes:

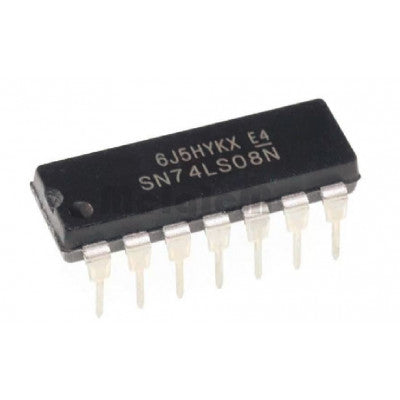

- 1 x 74LS08 Quadruple 2-Input Positive AND Gate IC (7408) DIP-14 Package
* Images are for illustration only; actual product may vary.
