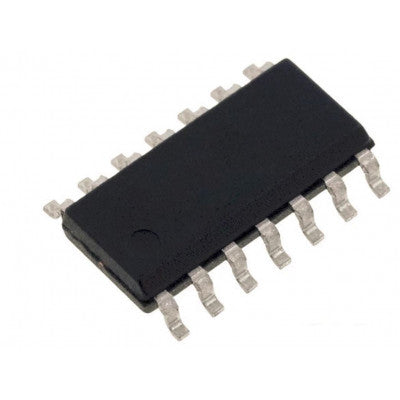

74LS05 IC - Hex Inverters with Open-Collector IC
Six independent gates performing the logic INVERT function with open-collector outputs.
- Supply Voltage: 4.75 - 5.25V
- HIGH Level Input Voltage: 2 - V
- LOW Level Input Voltage: -0.8V
- HIGH Level Output Voltage: -5.5V
- LOW Level Output Current: -8 mA
- Free Air Operating Temperature: 0 - 70°C
- Package Includes: 1 X 74LS05 IC - (SMD Package) Hex Inverters with Open-Collector IC (7405 IC)
Features:
- Six Independent INVERT Gates
- Open Collector Outputs Require Pull-Up Resistors
- Operating Temperature up to 70°C
- Standard TTL Switching Voltages
The device contains six independent gates, each performing the logic INVERT function. The open-collector outputs require external pull-up resistors for proper logical operation.
