74HC540 Octal Inverting Buffer/Line Driver/Line Receiver
Octal buffer/line driver/line receiver with versatile compatibility and high noise immunity.
- Output Drive Capability: 15 LSTTL Loads
- Operating Voltage Range: 2.0 to 6.0 V
- Low Input Current: 1 A
- High Noise Immunity Characteristic of CMOS Devices
The 74HC540 is identical in pinout to the LS540, featuring inputs compatible with Standard CMOS outputs and external pull-up resistors for LSTTL compatibility. It is designed for use with 3-state memory address drivers, clock drivers, and bus-oriented systems, with inputs and outputs positioned on opposite sides of the package and two ANDed active-low output enables.
Specifications:
- Supply Voltage: 0.5 to 7.0V
- DC Input Voltage: -0.5 to VCC + 0.5 V
- DC Output Voltage: -0.5 to VCC + 0.5 V
- DC Input Diode Current: ±20 mA
- DC Output Diode Current: ±35 mA
- Output Current: ±35 mA
- DC VCC or GND Current, per pin: ±75 mA
- Storage Temperature Range: -65°C to +150°C
- Power Dissipation: 500 mW
- Lead Temperature: 260°C
Related Document: 74HC540 SMD Data Sheet

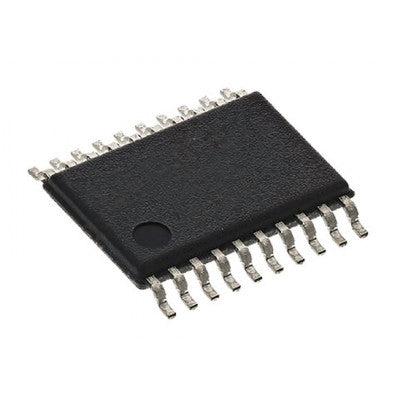

Images are for illustration only; actual product may vary.
