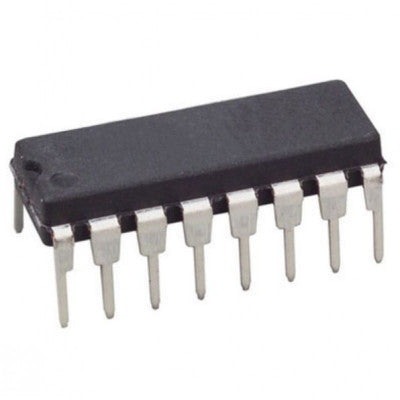

74HC4543 BCD to 7-Segment Decoder Driver IC
High-speed silicon-gate device for driving liquid-crystal displays
- DC Supply Voltage: -0.5V to 7V
- DC Input Diode Current: +20mA
- DC Output Diode Current: +20mA
- DC Output Source or Sink Current per Output Pin: +25mA
- DC VCC or Ground Current: +50mA
- Temperature Range: -55°C to 125°C
- Package: DIP-16
Top Features:
- Input Latches for BCD Code Storage
- Blanking Capability
- Phase Input for Complementing Outputs
- Wide Operating Temperature Range
The 74HC4543 is a versatile device suitable for driving various types of displays, including LEDs, incandescent, fluorescent, and gas-discharge displays. It features an active-high disable input (LD), active-high blanking input (BI), and a phase input (PH) for liquid-crystal applications.
When used with current amplifying devices, this decoder driver IC can provide active-high or active-low segment outputs. It offers balanced propagation delay and transition times, leading to significant power reduction compared to LSTTL technology.
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
