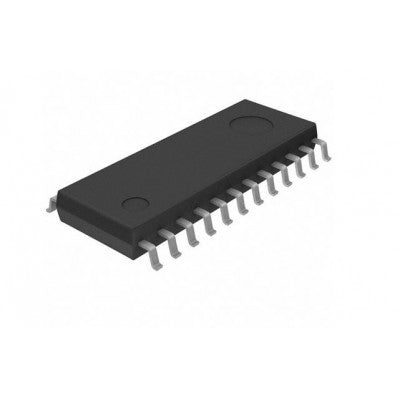

74HC4515 4-to-16 Line Decoder/Demultiplexer
A versatile IC for decoding and demultiplexing signals with ease.
- Supply Voltage: 2.5V
- Input Voltage: 0V to VCC
- Output Voltage: 0V to VCC
- Input Transition Rise and Fall Rate: VCC = 2.0V - 625ns/V, VCC = 4.5V - 1.67139ns/V, VCC = 6.0V - 83ns/V
- Ambient Temperature: -40°C to 125°C
- Package: SMD
Features:
- Inverting outputs
- CMOS input levels
- 16-line demultiplexing capability
- Decodes 4 binary-coded inputs into 16 mutually-exclusive outputs
The 74HC4515 is a 4-to-16 line decoder/demultiplexer with latch functionality. It features four binary weighted address inputs (A0 to A3) with latches, a latch enable input (LE), and an enable input (E). The device allows for easy selection of outputs based on the input data and latch status. It operates within a wide temperature range of -40°C to 125°C, making it suitable for various applications.
When used as a demultiplexer, the enable input (E) serves as the data input, while A0 to A3 act as address inputs. The device also includes clamp diodes for input protection, enabling safe interfacing with different voltage levels.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
