74HC4515 4-to-16 Line Decoder/Demultiplexer with Latch IC
A versatile decoder/demultiplexer with latch functionality for efficient signal routing.
- Supply Voltage: 2.0V to 6.0V
- Input Voltage: 0V to VCC
- Output Voltage: 0V to VCC
- Input Transition Rise and Fall Rate: 625ns/V to 139ns/V
- Ambient Temperature: -40°C to 125°C
Features:
- Inverting outputs
- CMOS input levels
- 16-line demultiplexing capability
- Decodes 4 binary-coded inputs into 16 mutually-exclusive outputs
The 74HC4515 is a 4-to-16 line decoder/demultiplexer with four binary weighted address inputs (A0 to A3) with latches. It features a latch enable input (LE), an enable input (E), and 16 inverting outputs (Q0 to Q15). When LE is HIGH, the selected output is determined by the data on An. When LE goes LOW, the last data present at An are stored in the latches and the outputs remain stable. When E is LOW, the selected output, determined by the contents of the latch, is LOW. When E is HIGH, all outputs are HIGH. The enable input E does not affect the state of the latch. When the device is used as a demultiplexer, E is the data input and A0 to A3 are the address inputs. Inputs include clamp diodes, enabling the use of current limiting resistors to interface inputs to voltages in excess of VCC.

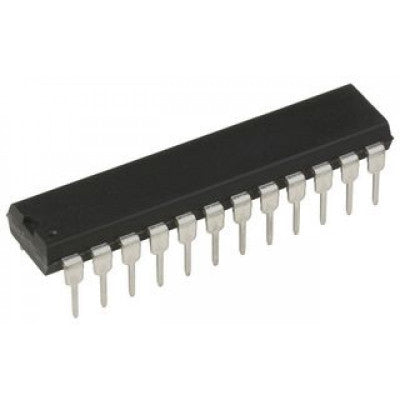

Specified from -40°C to +85°C and -40°C to +125°C, this IC comes in a DIP-24 package.
* Images are for illustration only; actual product may vary.
