74HC4066 Quadruple Bilateral Analog Switch IC (744066) DIP-14 Package
A quad single pole, single throw analog switch with low ON resistance and ESD protection.
- Input levels nE inputs: For 74HC4066: CMOS level, For 74HCT4066: TTL level
- Low ON resistance: 50? (typical) at VCC = 4.5V, 45? (typical) at VCC = 6.0V, 35? (typical) at VCC = 9.0V
- Specified in compliance with JEDEC standard no. 7
- AESD protection: HBM JESD22-A114F exceeds 2000V, MM JESD22-A115-A exceeds 200V
Specifications:
- Supply Voltage: -0.5 to +7V
- Input Clamping Current: 0 to +20mA
- Output Clamping Current: 0 to +20mA
- Switch Current: 0 to +25mA
- Supply Current: -50mA
- Ground Current: -50mA
- Storage Temperature: -65 to +150°C
- Total Power Dissipation: 0 to 500mW

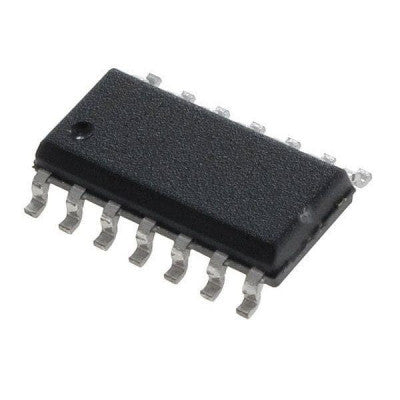

- Package Includes: 1 X 74HC4066 IC - (SMD Package) - Quadruple Bilateral Analog Switch IC (744066)
The 74HC4066; 74HCT4066 is a quad single pole, single throw analog switch. Each switch features two input/output terminals (nY and nZ) and an active HIGH enable input (nE). When nE is LOW, the analog switch is turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
*Images are for illustration only; actual product may vary.*
