74HC4016 Quad Analog Switch
A versatile quad single pole, single throw analog switch with high performance.
- Supply Voltage: -0.5 to +11V
- Input Clamping Current: 0 to +20mA
- Output Clamping Current: 0 to +20mA
- Output Current: 0 to +25mA
- Supply Current: 0 to +50mA
- Ground Current: -50 to -mAT
- Storage Temperature: -65 to +150°C
- Total Power Dissipation: 0 to 500mW
Top Features:
- CMOS level nE inputs
- 'Break before make' built-in
- Low ON resistance: 160 (VCC = 4.5V), 120 (VCC = 6.0V), 85 (VCC = 9.0V)
- AESD protection: HBM JESD22-A114F (>2000V), MM JESD22-A115-A (>200V)
Each switch in the 74HC4016 features two input/output terminals (nY and nZ) and an active HIGH enable input (nE). The analog switch is turned off when nE is LOW. Clamp diodes on inputs allow the use of current limiting resistors to interface inputs to voltages exceeding VCC.
Specified in compliance with JEDEC standard no. 7, this IC operates in a wide temperature range from -40°C to +125°C.
Package Includes:

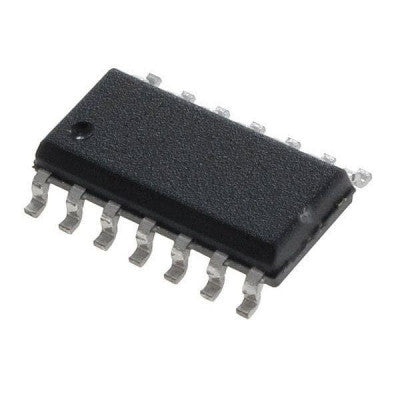

- 1 X 74HC4016 IC - (SMD Package) - Quad Analog Switch Multiplexer Demultiplexer IC (744016 IC)
Images are for illustration only; actual product may vary.
