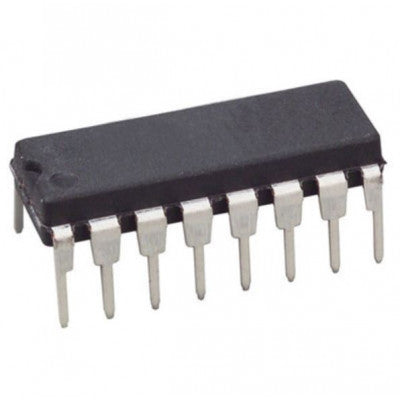

74HC148 16 Pin 8-Line to 3-Line Priority Encoder IC
16 Pin Encoder IC with 2V to 6V Operating Voltage and 5.2mA Output Current
- Package Type: DIP
- Voltage Rating: 2 to 6V
- Current Rating: 8mA Output Current, 1µA Maximum low input current
- Temperature Rating: -40 to 85 Deg C
- Number of Pins: 16
- Propagation Delay: 16ns
Key Features:
- 16 Pin DIP package
- Operating Voltage: 2V to 6V
- Output Current: 5.2mA
- Low Power Consumption
74HC148 is a 16 Pin 8-Line to 3-Line Priority Encoder IC designed to encode Eight Data Lines to 3-Line Binary. It features priority decoding to ensure only the highest-order data line is encoded. The IC includes cascading circuitry (enable input EI and enable output EO) for octal expansion without external circuitry. Data inputs and outputs are active at the low logic level.
Datasheet: 74HC148 IC Datasheet
*Images are for illustration only; actual product may vary.
