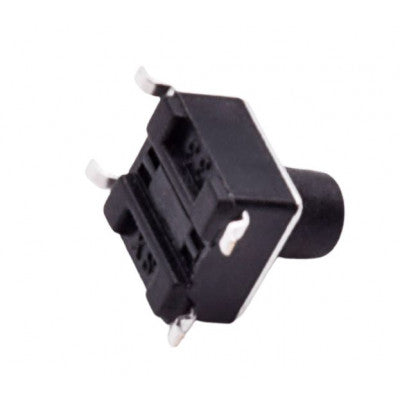

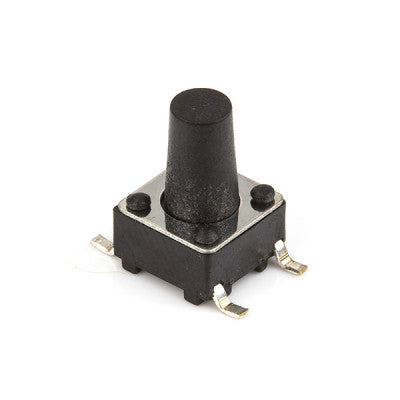

6x6x9.5mm SMD Tactile Switch
Widely used surface mount switch with reliable dome contact technology
- Mount: Surface Mount
- Number of Pins: 4
- Current Rating: 50 mA
- Orientation: Straight
- Throw Configuration: SPST
- Voltage Rating: 12 V
- Size (LxWxH): 6x6x9.5 mm
- Max Operating Temperature: 70°C
- Min Operating Temperature: -20°C
- Operating Force: 250 gf
Top Features:
- Surface mount design
- High operating force (3.0N or 3.6N)
- Long life of 300,000 cycles
- Waterproof and anti-static interference
The 6x6x9.5mm SMD Tactile Switch is a standard input button for electronic projects, featuring a surface mount design suitable for limited spaces. The switch offers reliable dome contact technology and strong tactile feedback with multiple operating forces available. It is commonly used in telecommunications, consumer electronics, medical devices, and more.
This light touch switch has a middle stroke of 1.05mm and is ideal for electronic products and household appliances. With a high operating force, it meets automotive equipment requirements and ensures a long service life of 300,000 cycles. The switch is compact, lightweight, and offers good electrical conductivity.
Package Includes: 5 x 6x6x9.5mm SMD 4 Pin Tactile Switch
* Images are for illustration only; actual product may vary.
