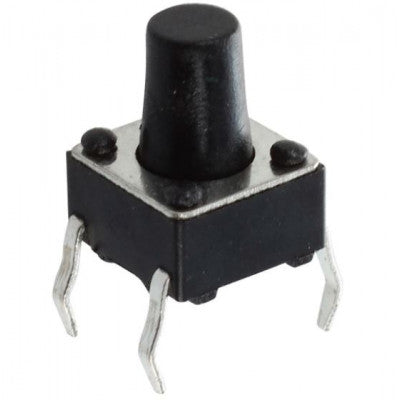

6x6x8mm Tactile Push Button Switch
Reliable dome contact technology with strong tactile feedback for electronic projects.
- Operating Voltage (VDC): 12
- Max. Operating Current (mA): 50mA
- On/Off Function: Push to ON
- Switch Type: Momentary
- Contact Type: Through-hole
- Contact Material: Brass
- Contact Resistance: 50m?
- Insulation Resistance (M?): 100
- Operating Temperature Range (°C): -20 to 70
- Operation Force: 1.56 +/- 0.5 N
- Operation Stroke: 0.25+0.2/-0.1mm
- Body Material: Plastic
- Mech. & Electrical Lifecycle: 50000
- Protection Standard: IP65
- Length (mm): 6
- Width (mm): 6
- Height (mm): 8
- Weight (gm): 1 (approx) (each)
Features:
- Through-hole design
- High operating force (1.5N or 2.5N)
- Long life of 300,000 cycles
- Compact and lightweight
Widely used as a standard input button on electronic projects, the 6x6x8mm Tactile Push Button Switch is best mounted on a PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open and close momentarily when pressed, completing the circuit. This switch offers reliable dome contact technology and strong tactile feedback, with multiple operating forces available. It is suitable for various applications including telecommunications, consumer electronics, medical devices, and more. The pack includes 10 switches, making them a handy addition to your toolkit.
This light touch switch is waterproof, oil-resistant, anti-pollution, and anti-static interference. Its high precision mechanism design ensures acute operation and a long service life, while the high operating force makes it suitable for automotive equipment requirements.
Package Includes:
- 20x6x6x8mm Tactile Push Button Switch
Images are for illustration only; actual product may vary.
