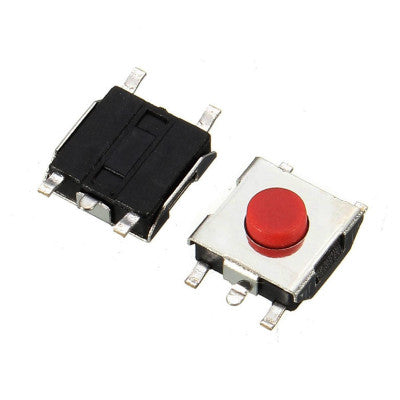

6x6x5mm SMD 5 Pin Tactile Switch
Widely used surface mount switch with reliable dome contact technology
- Mount: Surface Mount
- Number of Pins: 5
- Current Rating: 50 mA
- Orientation: Straight
- Throw Configuration: SPST
- Voltage Rating: 12 V
- Size (LxWxH): 6x6x5 mm
- Max Operating Temperature: 70°C
- Min Operating Temperature: -20°C
- Operating Force: 250 gf
Features:
- Surface mount design
- High operating force (3.0N or 3.6N)
- Long life of 300,000 cycles
- Middle stroke (1.05mm)
The 6x6x5mm SMD 5 Pin Tactile Switch is a widely used standard input "buttons" on electronic projects. It is designed for applications in telecommunications, consumer electronics, medical devices, and more. This switch offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. It is compact, lightweight, and easy to carry, making it suitable for various electronic products and household appliances.
When the button is pressed, the normally open pins are momentarily closed, completing the circuit. This switch is waterproof, oil-resistant, anti-pollution, and anti-static interference, ensuring durability and reliability in various environments. The high precision mechanism design provides acute operation and a long service life, while the good electrical conductivity ensures efficient performance.
Package Includes: 5 x 6x6x5mm SMD 5 Pin Tactile Switch
* Images are for illustration only; actual product may vary.
