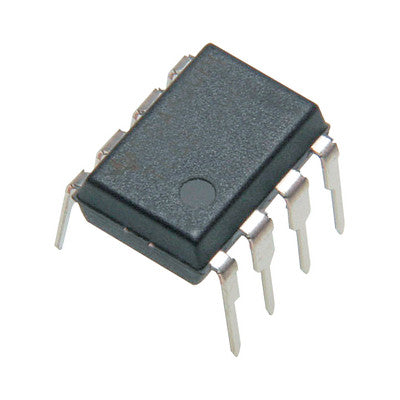

6N135 Optocoupler
An optocoupler with high-speed transmission capabilities.
- Isolation test voltages: 5300 VRMS
- TTL compatible: Yes
- High bit rates: 1 Mbit/s
- High common-mode interference immunity
- Bandwidth: 2 MHz
- Output: Open-collector
- External base wiring: Possible
Features:
- Optical coupling
- High-speed transmission
- Wide bandwidth
The 6N135 is an optocoupler with a GaAIAs infrared emitting diode, optically coupled with an integrated photo detector consisting of a photo diode and a high-speed transistor in a DIP8 plastic package. It allows signals to be transmitted between two electrically separated circuits up to frequencies of 2 MHz. It is important to ensure that the potential difference between the circuits to be coupled does not exceed the maximum permissible reference voltages.
