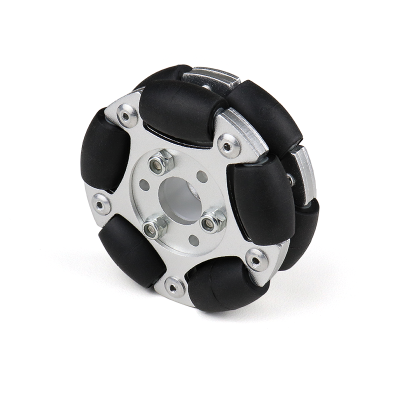

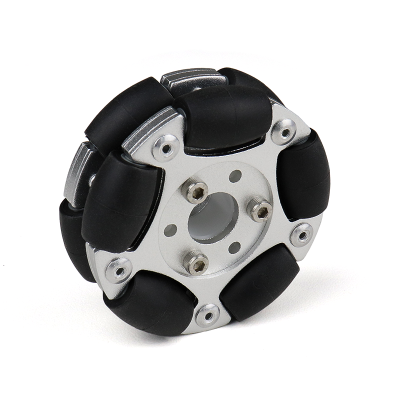

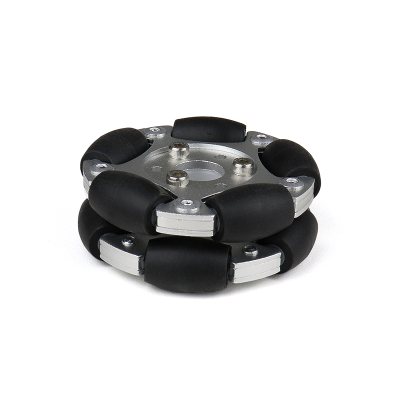

60mm Double Aluminum Omni Wheel
Small Omni wheel with a 3kg loading capacity and 360-degree movement
- Body Material: Aluminum
- Diameter (mm): 60
- Total Body Width (mm): 25
- Load Capacity(Kg/Wheel): 3
- Axial OD (mm): 12
- Pitch Circle Diameter (PCD) mm: 21
- Number of Plates: 6
- Number of Rollers per Wheel: 10
- Roller Type: Bearing
- Roller Material: Nitrile Rubber
- Roller Diameter (mm): 19
- Roller Width (mm): 18
- Weight (gm): 62
- Color: Silver
Features:
- Small size wheel
- 3kg load capacity
- 6-disc assembly for strength
- Compatible with PCD-21 mm couplings
Our Omni directional wheels will make your application/robot move in all directions. The 60mm Double Aluminum Omni Wheel is the smallest Omni wheel with a loading capacity of 3kg. They equip six Aluminum Plates joined together in pairs of three. The rubber rollers along the circumference of the wheel prevent slipping while moving sideways and minimize friction. The rollers have two bearings for smooth movement in any direction. This wheel provides more controllable degrees of freedom compared to conventional wheels, allowing 360-degree movement with rotational and sideways maneuverability. It is a sophisticated technology to convert a robot from Non-Holonomic to Holonomic.
What makes these wheels move in all directions are the small rollers along the wheel circumference. These rollers are positioned so that their rotational axis is perpendicular to the main wheel's rotational axis. This design enables the Omni wheels to rotate forward, backward, and freely around themselves, providing 360-degree rotation due to the two rotational axes within one wheel.
Package Includes: 1 x 60mm Double Aluminum Omni Wheel
* Images are for illustration only; actual product may vary.
