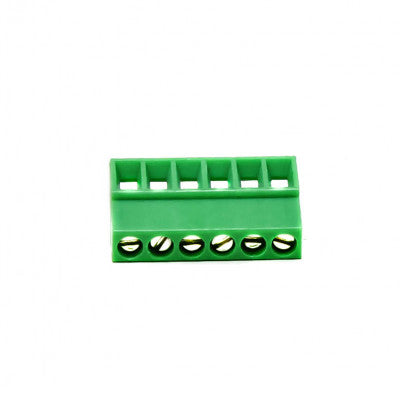

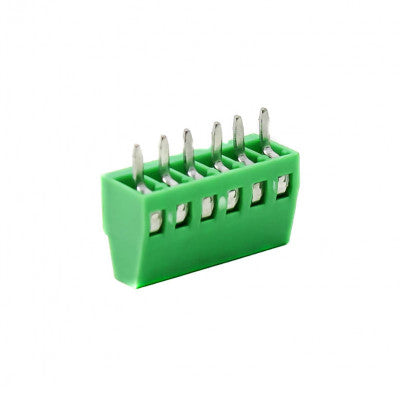

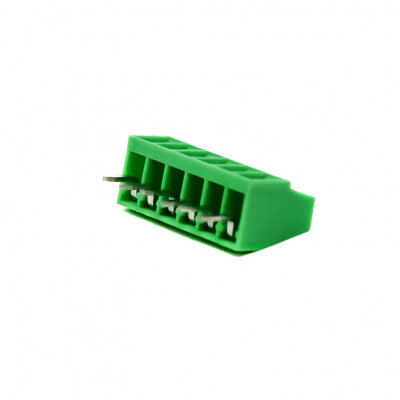

6 Pin 5.08mm Pitch Pluggable Screw Terminal Block
A compact and versatile terminal block for connecting wires to PCBs.
- Connector: PCB Terminal Block
- Allowed Wire Size (AWG): 22 ~ 12
- Termination: Screw
- No. of Contacts: 6
- Voltage(V): 320
- Operating Current (A): 6
- Mounting Type: Through Hole
- Pin Spacing (mm): 5.08
- Material: Metal and plastic
- Length (mm): 30
- Width (mm): 10
- Height (mm): 18
- Weight (gm): 7 (each)
Top Features:
- Saves space due to the small design
- Screw connection with tension sleeve
- Maximum contact force ensures a low-temperature rise
- Connection in accordance with EN-VDE Standard
The 6 Pin 5.08mm Pitch Pluggable Screw Terminal Block is ideally suited for miniature rack systems or telecoms equipment requiring high contact density. It allows for the connection of two conductors on a PCB, making it perfect for scenarios where space is limited. The terminal block features screws to securely hold wires ranging from 12 to 22 AWG in place.
Each terminal has a single corresponding pin spaced every 5.08mm, enabling compatibility with prototyping boards and PCB holes designed for standard 5.08mm male and female headers, provided there is sufficient clearance from nearby components.
Package Includes: 1 x 6 Pin 5.08mm Pitch Pluggable Screw Terminal Block
* Images are for illustration only; actual product may vary.
