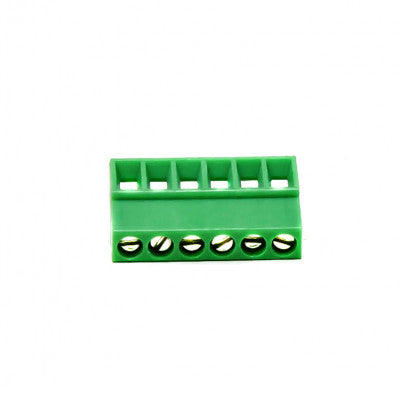

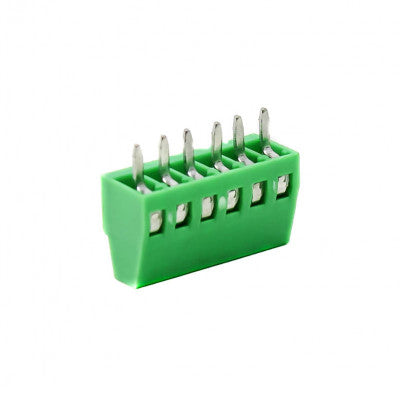

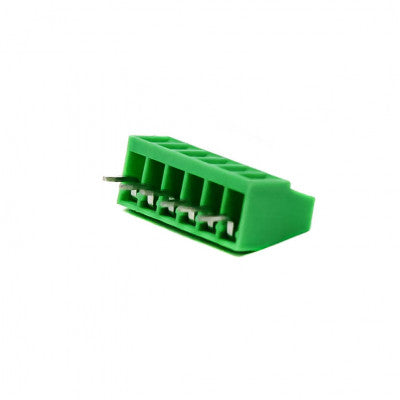

6 Pin 2.54mm Pitch Pluggable Screw Terminal Block
A compact and versatile terminal block for connecting wires to PCBs.
- Connector: PCB Terminal Block
- Termination: Screw
- No. of Contacts: 6
- Voltage(V): 320
- Allowed Wire Size (AWG): 22 ~ 18
- Operating Current (A): 6
- Mounting Type: Through Hole
- Pin Spacing (mm): 2.54
- Material: Metal and plastic
- Length (mm): 16
- Width (mm): 6
- Height (mm): 12
- Weight (gm): 5
Features:
- Saves space due to the small design
- Screw connection with tension sleeve
- Maximum contact force ensures a low-temperature rise
- Connection in accordance with EN-VDE Standard
The 6 Pin 2.54mm Pitch Pluggable Screw Terminal Block is ideally suited for miniature rack systems or telecoms equipment where high contact density is required. It allows for the connection of two conductors on a PCB, making it perfect for applications where space is at a premium. The terminal block features screws to keep the wires securely in place and can accommodate wires from 14 to 22 AWG.
Each terminal has a single corresponding pin spaced every 2.54mm, making it compatible with prototyping boards and PCB holes designed for standard 2.54mm male and female headers, provided there is sufficient clearance from nearby components.
