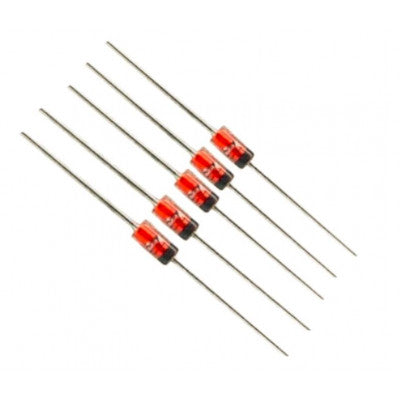

6.2V Zener Diode
A complete series of 1/2 Watt Zener diode with excellent operating characteristics.
- Zener Voltage: 6.2V
- ESD Rating: Class 3 (>16V) per Human Body Model
- Package: DO-35
- Construction: Double Slug Type, Metallurgical Bonded
Top Features:
- Zener Voltage - 6.2V
- ESD Rating of Class 3
- DO-35 Package
- Double Slug Type Construction
The 6.2V Zener Diode is designed with silicon-oxide passivated junctions for superior capabilities. It comes in an axial-lead hermetically sealed glass package, providing protection in common environmental conditions.
Mechanical Characteristics:
- CASE: Double slug type, hermetically sealed glass
- FINISH: Corrosion-resistant external surfaces, solder-able leads
- MAXIMUM LEAD TEMPERATURE FOR SOLDERING PURPOSES: 230°C, 1/16" from the case for 10 seconds
- POLARITY: Cathode indicated by polarity band
- MOUNTING POSITION: Any
Specification:
- Power Dissipation (PD): 1/2 W
- Operating Temperature Range (TJ): -65 to 200°C
- Storage Temperature Range (TSTG): -65 to 200°C
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
