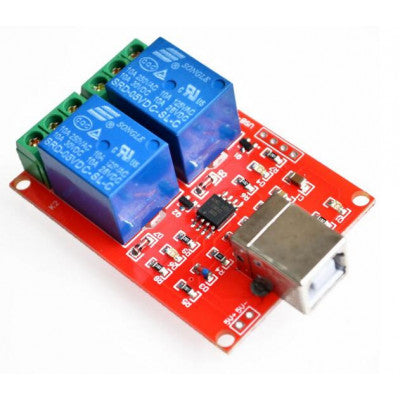

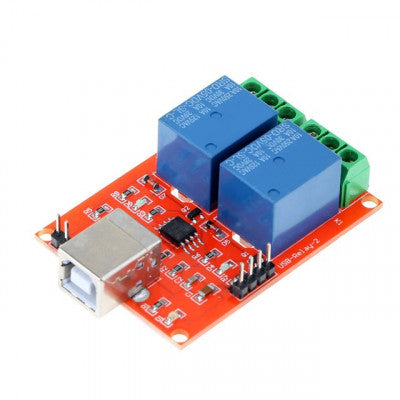

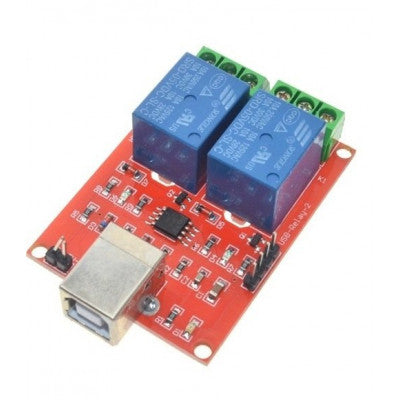

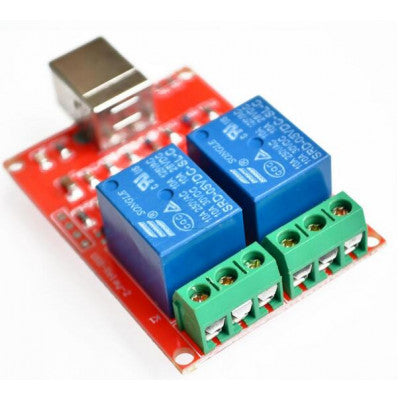

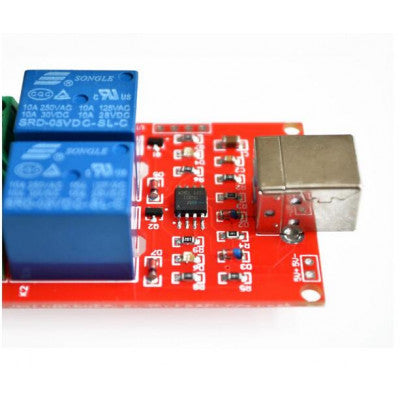

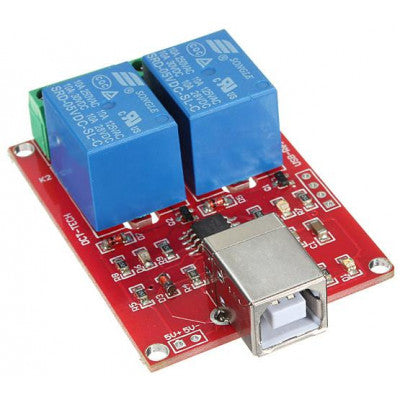

5V 2 Channel USB PC Intelligent Control Relay Module
High-quality USB relay module for easy plug-and-play control
- Operating Voltage: 5V
- Trigger Voltage: 5V
- Trigger Current: 20mA
- Switching Voltage (AC): 250@10A
- Switching Voltage (DC): 30@10A
- Opt. Relative Humidity: 20% - 85%
- Storage Condition: -40 to 80°C
- Operating Temperature: -40 to 85°C
- Length: 63mm
- Width: 41mm
- Height: 17mm
- Weight: 30g
Top Features:
- Stable connection with onboard USB interface
- Green/red indicator for relay status
- Military-grade PCB board
- Supports Windows 7 and XP 32-bit systems
This 5V 2 channel USB PC Intelligent Control Relay Module utilizes HID technology and high-quality components, eliminating the need for drivers. Simply download the required data from the application and enjoy plug-and-play functionality. The module supports Windows 7 and XP 32 systems and features military-level PCB production for durability.
With options for 4-channel and 8-channel power connectors, this module ensures that even if the USB is unplugged or the computer is turned off, the relay maintains its settings. The module's fix hole size is 3mm with a fix hole central moment of 52.2mm x 36.6, making it versatile for various applications such as home automation, robotics control, and controlling doors and windows via the Windows system.
Package Includes: 1 x 5V 2 channel USB PC Intelligent Control Relay Module
* Images are for illustration only; actual product may vary.
